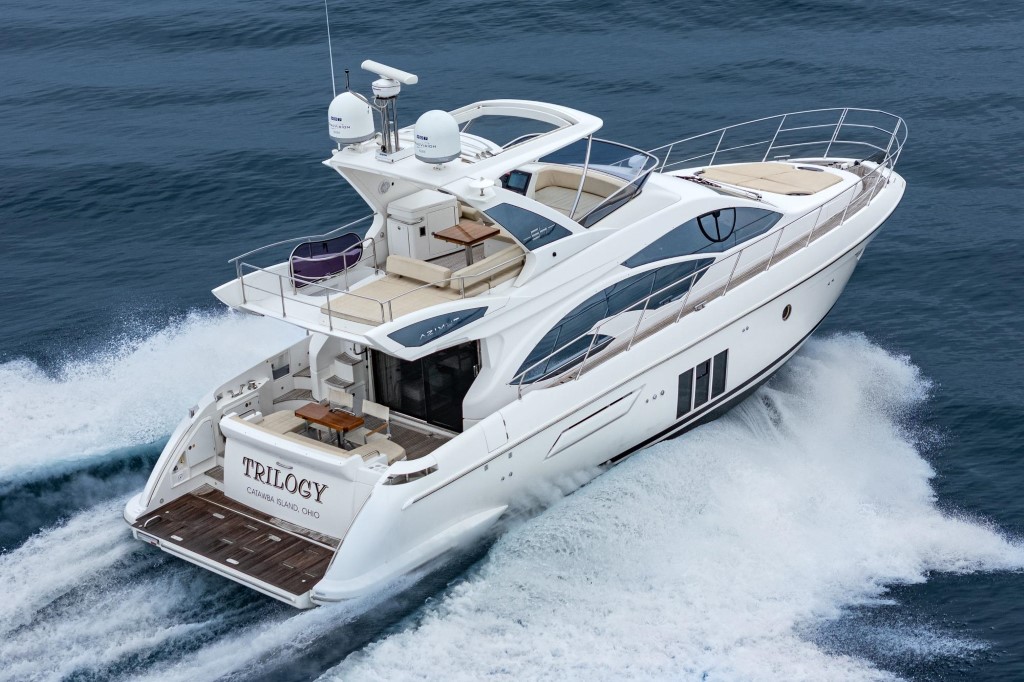

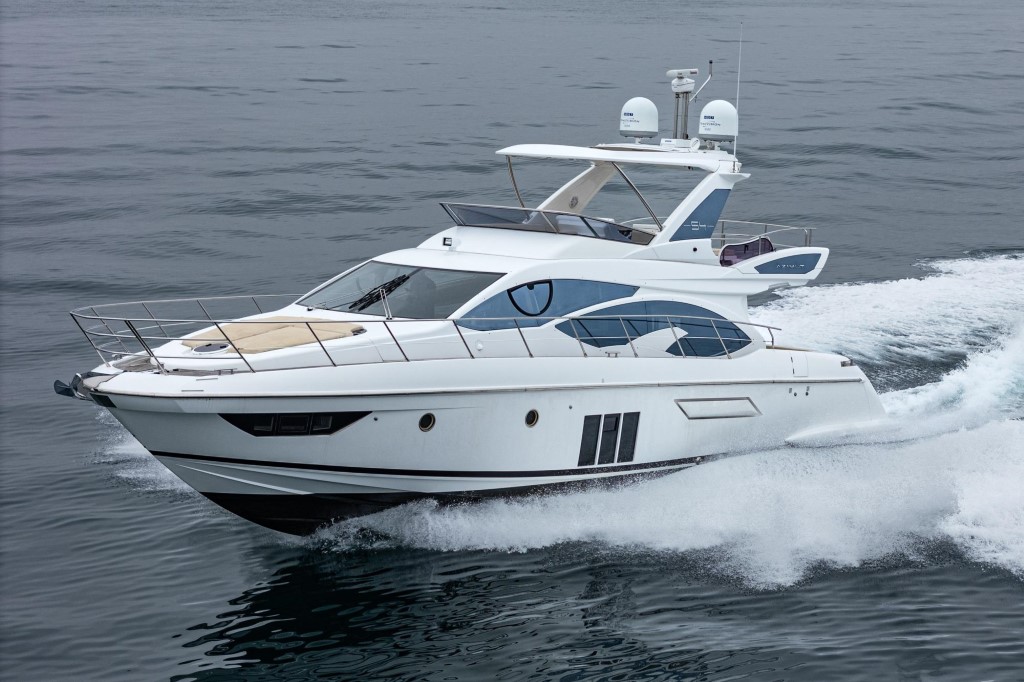

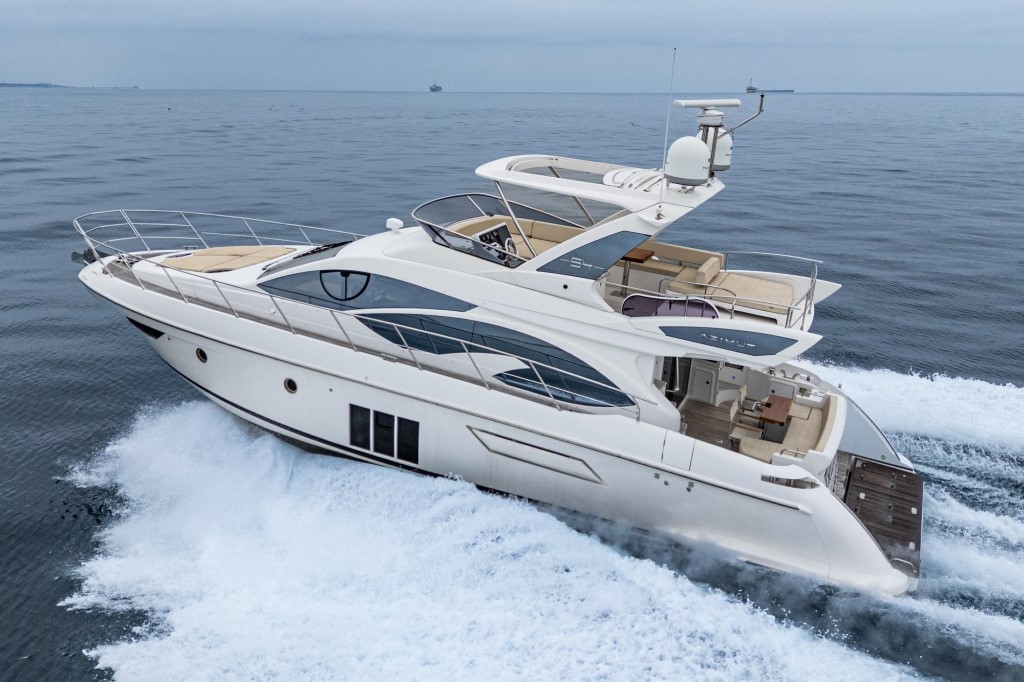

2017 Azimut 54 Flybridge | 54ft

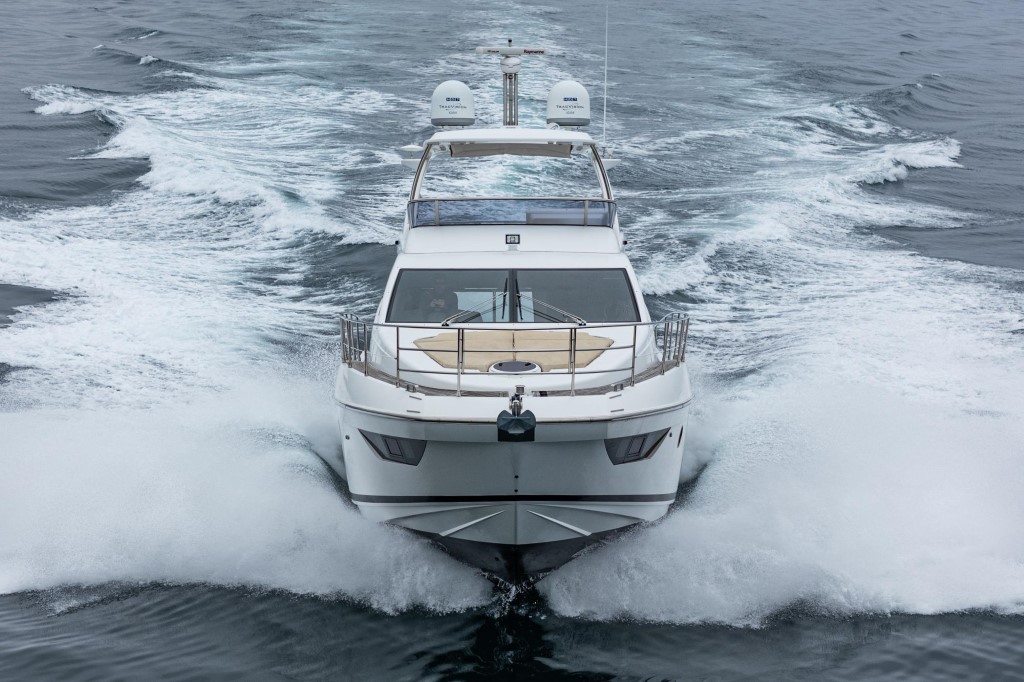

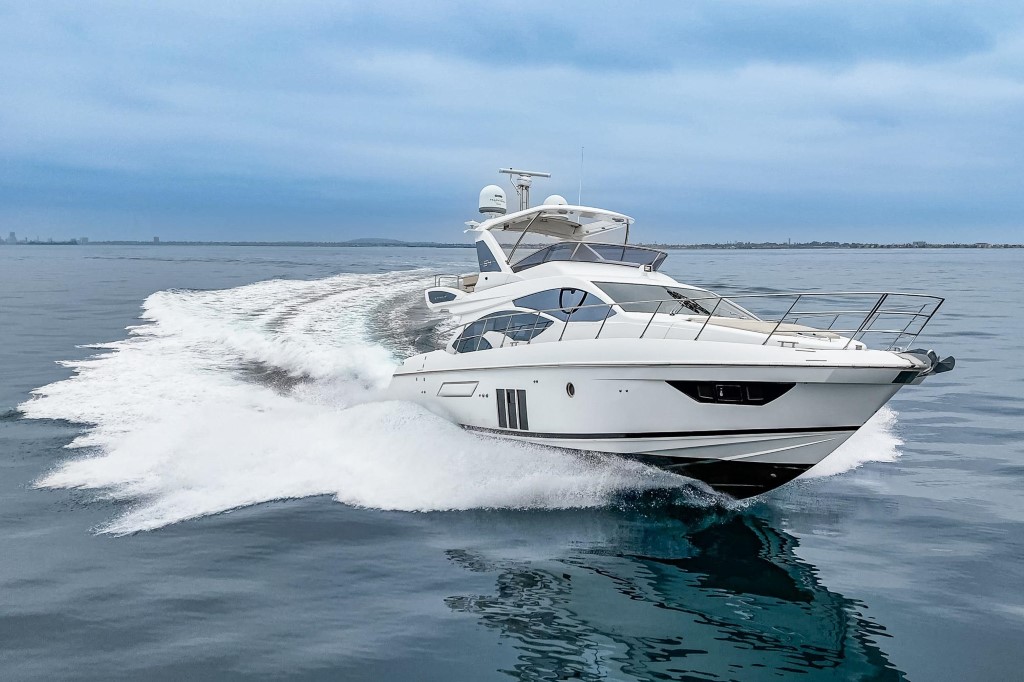

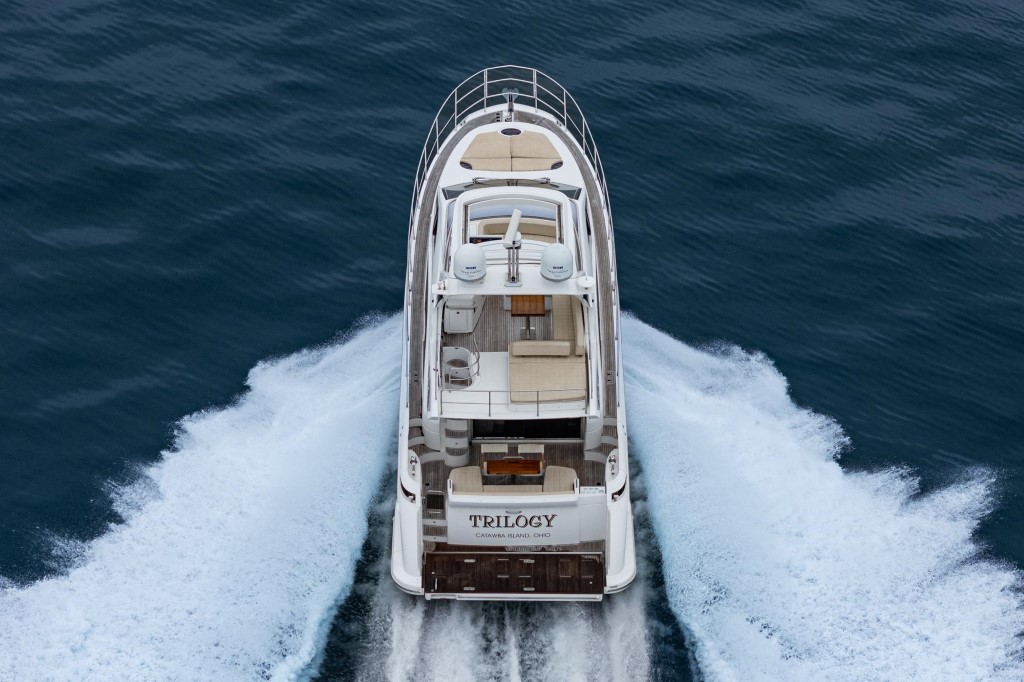

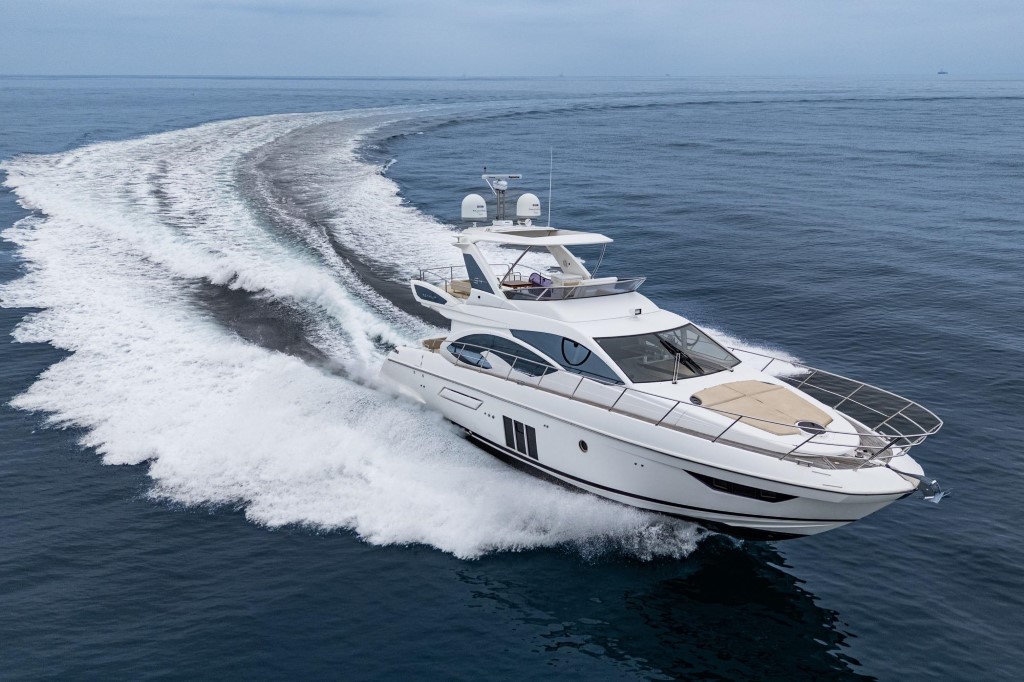

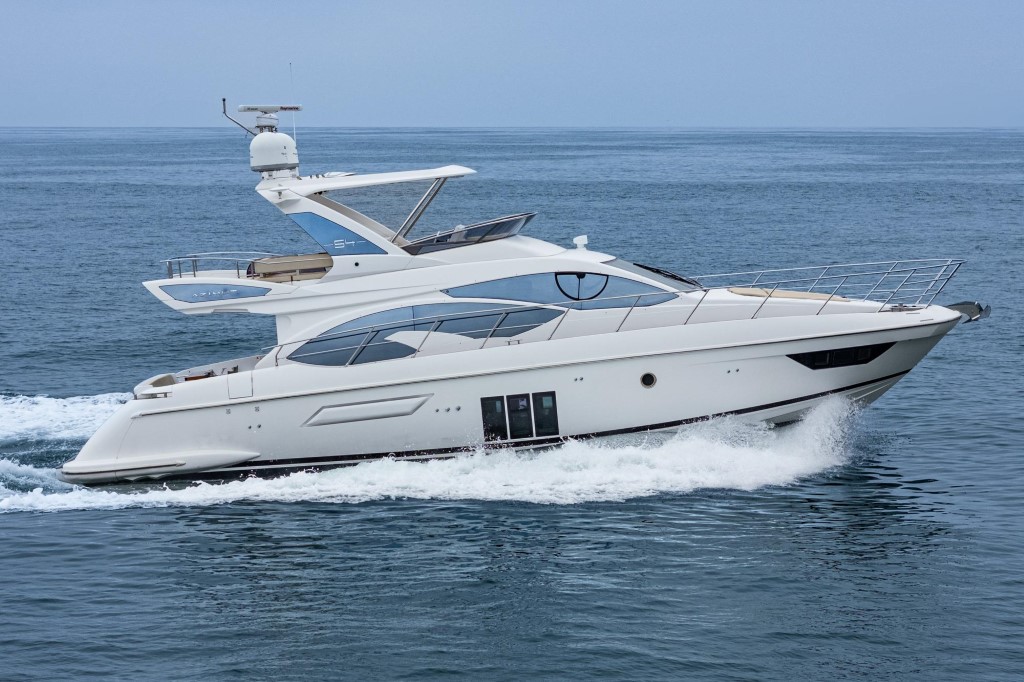

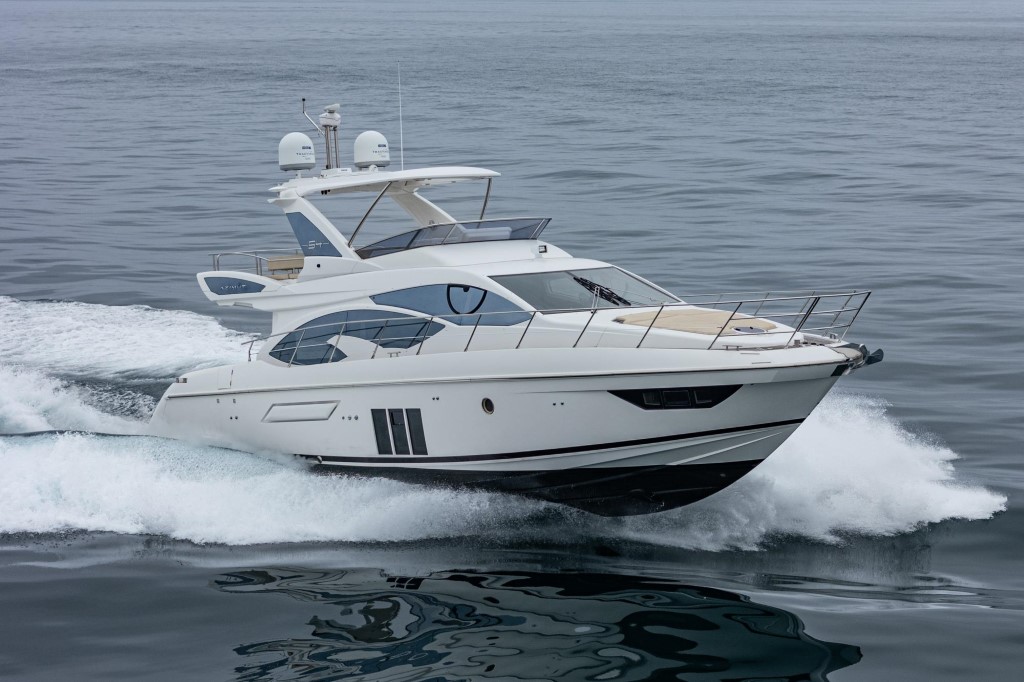

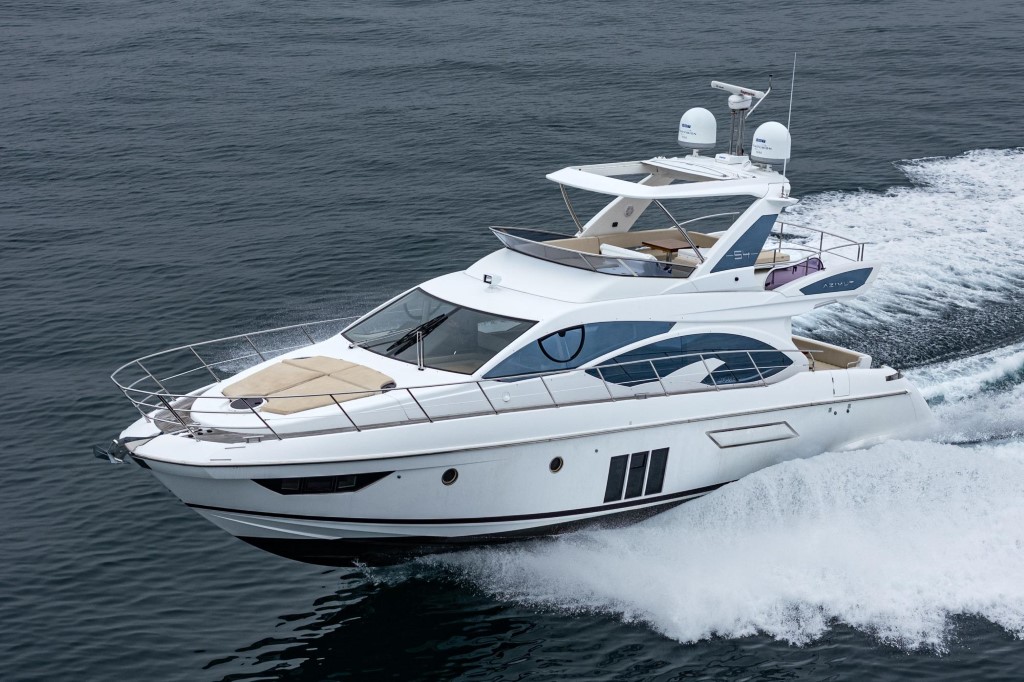

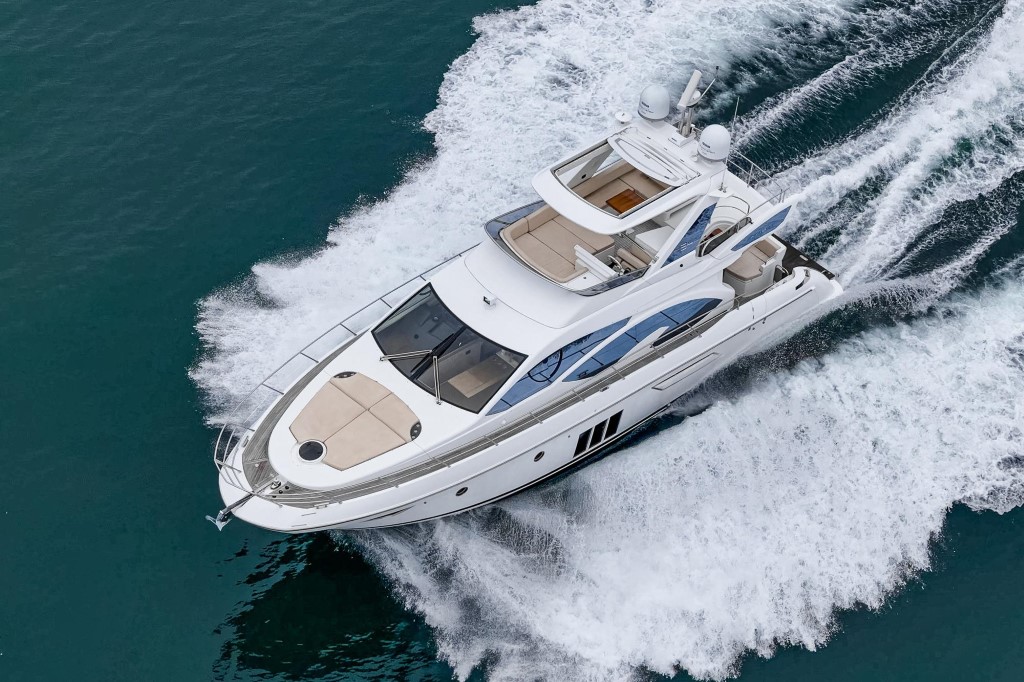

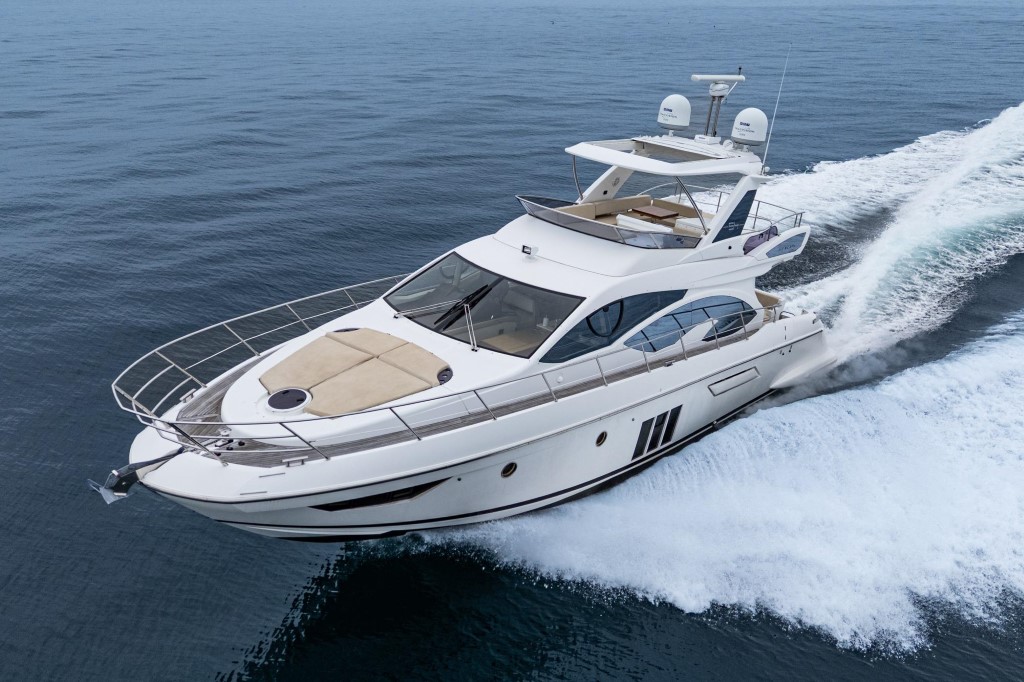

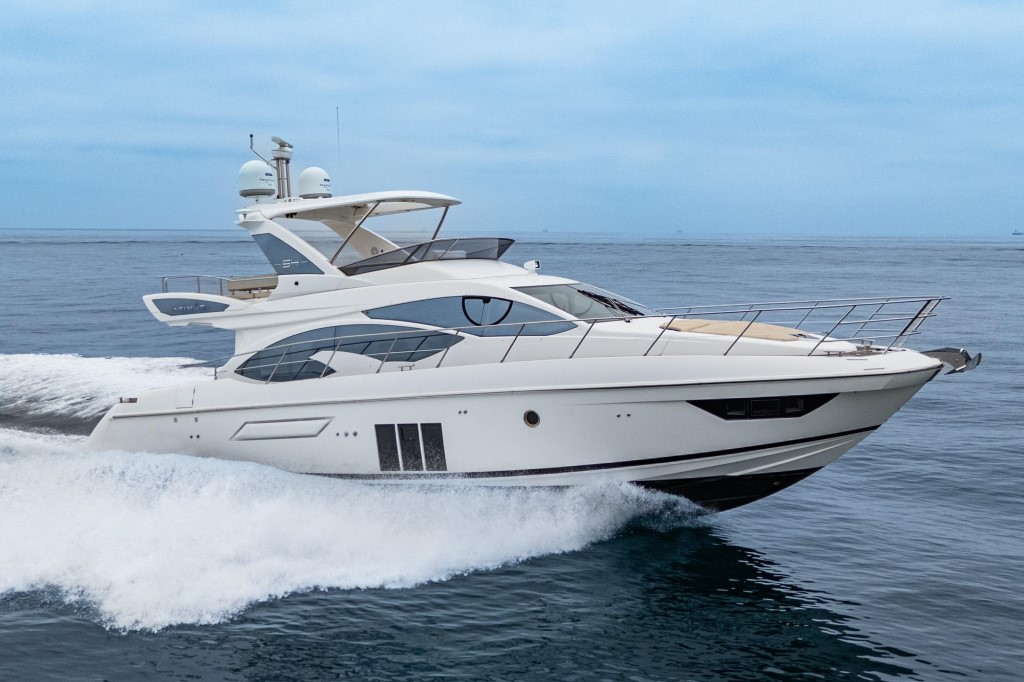

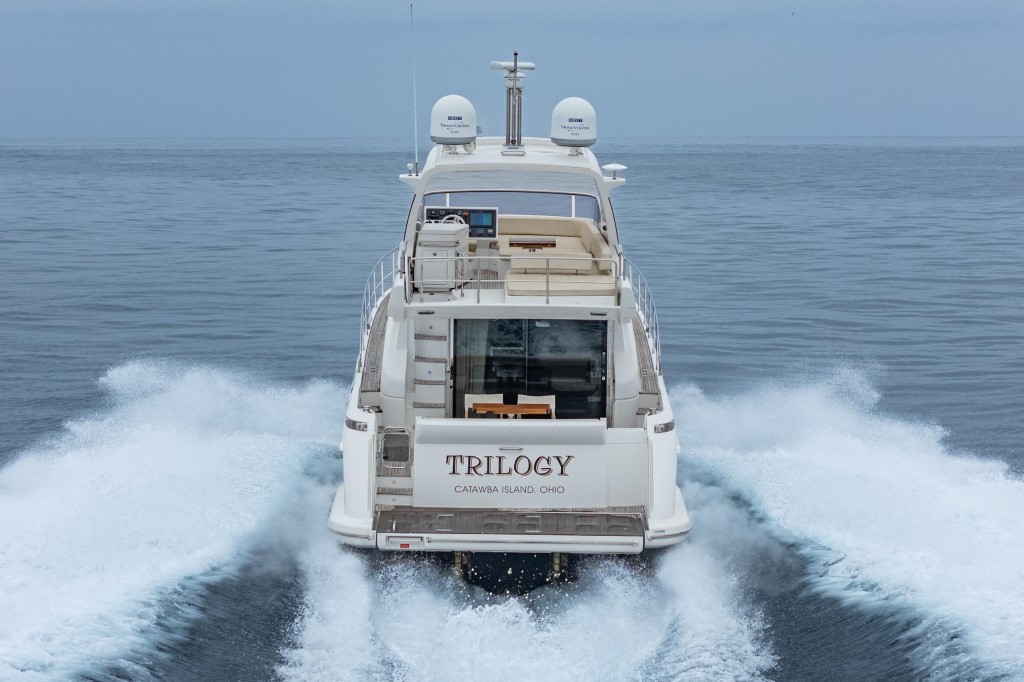

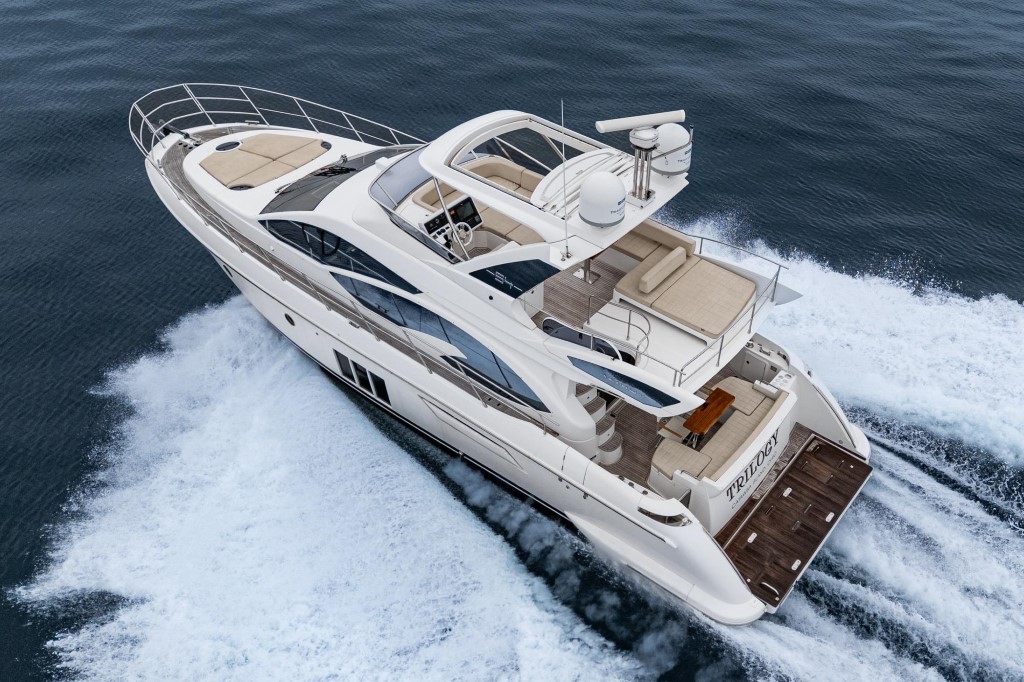

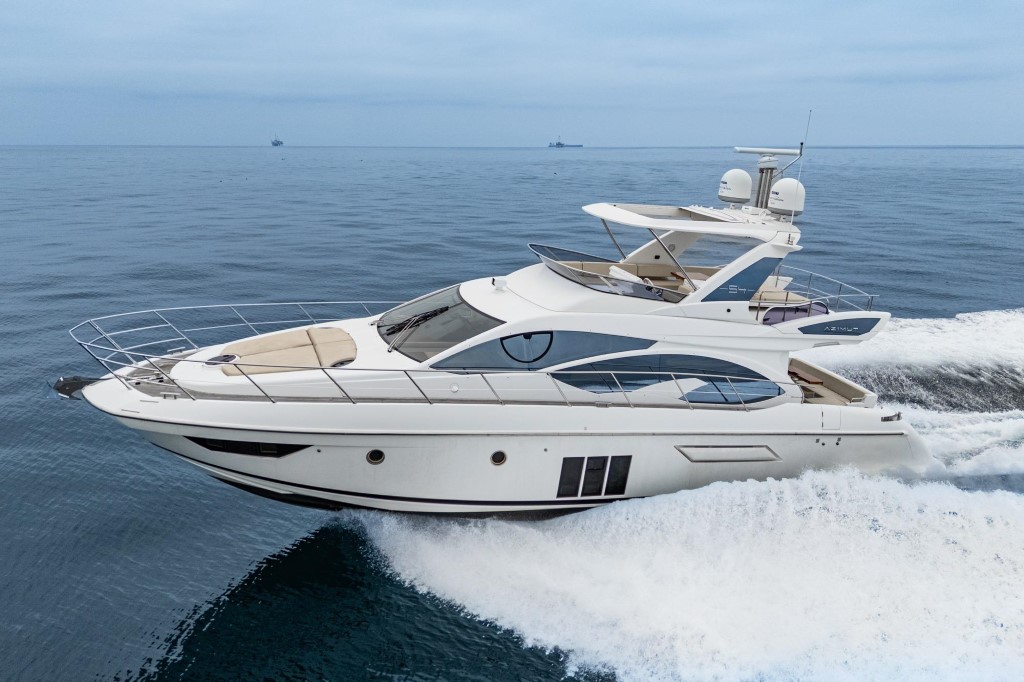

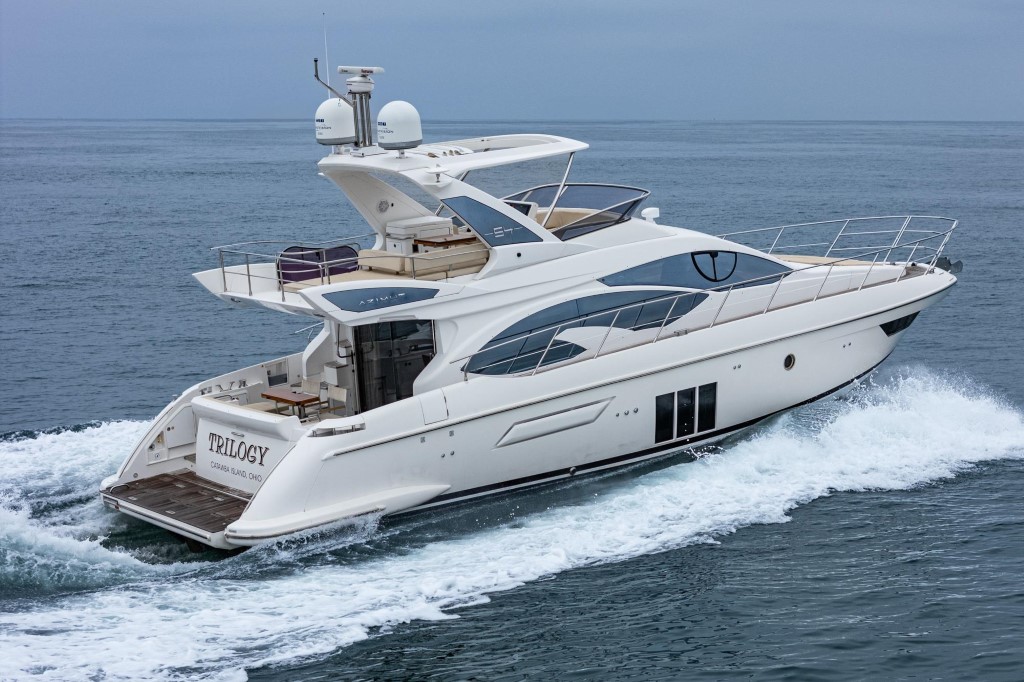

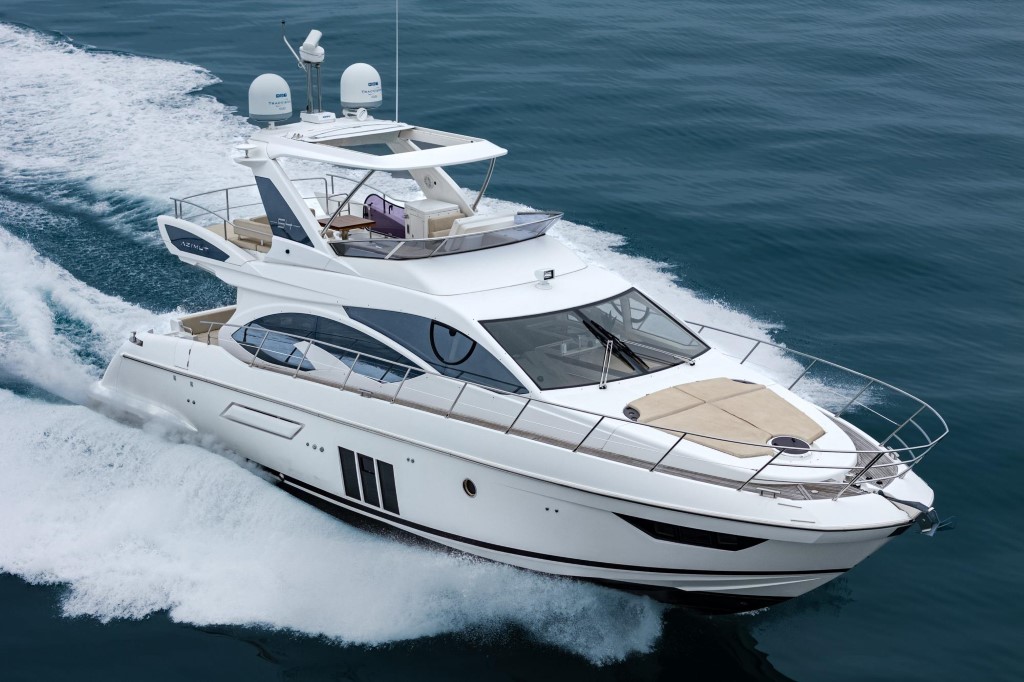

Introducing this stunning 2017 Azimut 54 Flybridge, a remarkable motor yacht that has an eye-catching design and incredible performance. With an overall length of 54 feet, this three-stateroom vessel is outfitted with all the luxurious accommodations. Crafted with care, this Azimut combines a stable seaworthy platform with her gyro seakeeper and a super sleek hull. Powered by twin Volvo D11 inboard engines, this yacht delivers an impressive cruising speed of 27 knots, with a maximum hull speed of 32 knots, ensuring an thrilling ride on the water. With a range of 300 miles at cruising speed, this Azimut 54 Flybridge model is perfect for extended adventures throughout coastal California. This yacht features a well-equipped layout, ideal for entertaining and relaxation. Experience the expansive flybridge, where you can enjoy the view from up above and the open air with her integrated sunroof. The Azimut 54 Flybridge is a perfect blend of sophistication and performance, making it an ideal choice for any discerning boater.

Specs
Class:	Motoryacht
Model	54 Flybridge
Hull Material:	Fiberglass
Engine:	Volvo D11
Engine Hours	725

Speed & Distance
Cruising Speed:	27kn
Max Speed:	30kn
Range:	300nm

Dimensions
Length Overall:	54.25ft
Max Draft:	4.42ft
Beam:	15.42ft

Propulsion
Engine 1
Engine Make:	Volvo
Engine Model:	D11
Engine Hours:	725
Engine Type:	Inboard
Drive Type:	Direct Drive
Engine 2
Engine Make:	Volvo
Engine Model:	D11
Engine Hours:	725
Engine Type:	Inboard
Drive Type:	Direct Drive

Vessel Highlights:

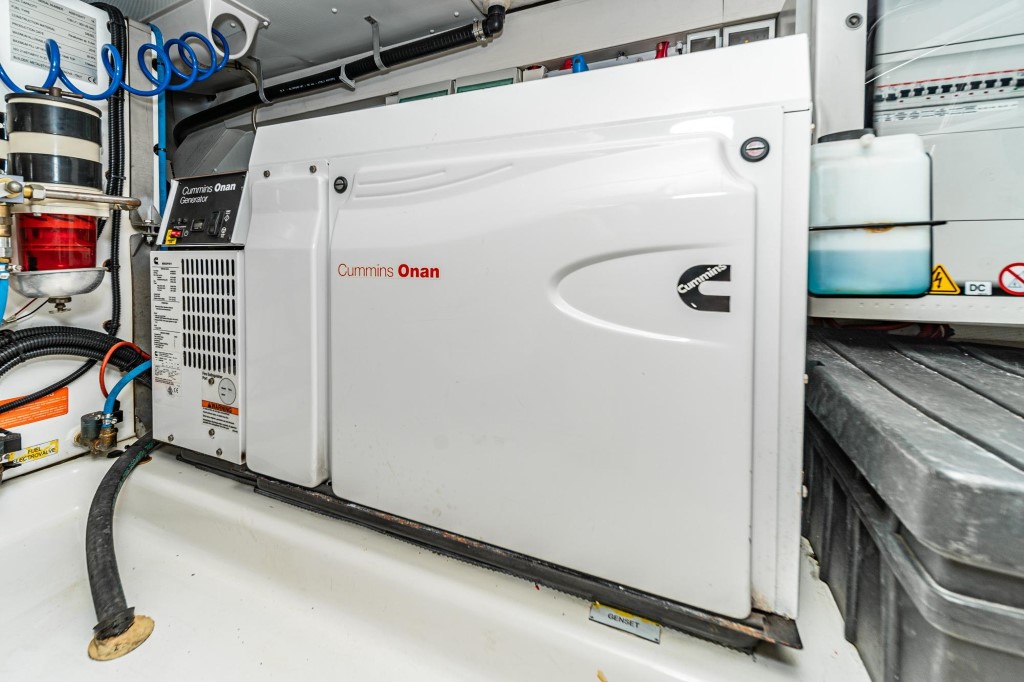

Year: 2017 Builder: Azimut Yachts Model: 54 Fly Type: Sport Yacht Location: Huntington Beach, California, United States LOA: 54' (16.46m) Beam: 16' 3" (4.95m) Min Draft: 3' 3" (0.99m) Cruising Speed: 27 Knots Max Speed: 32 Knots Engines: Twin Volvo D11, 725 HP, Diesel, Inboard, 725hrs each Gen: 1112 hours Staterooms: 3 Crew Quarters

Tanks
Fuel Capacity: 618 Gal Water Capacity: 155 Gal Holding Tank: 92 Gal

Options & Features:

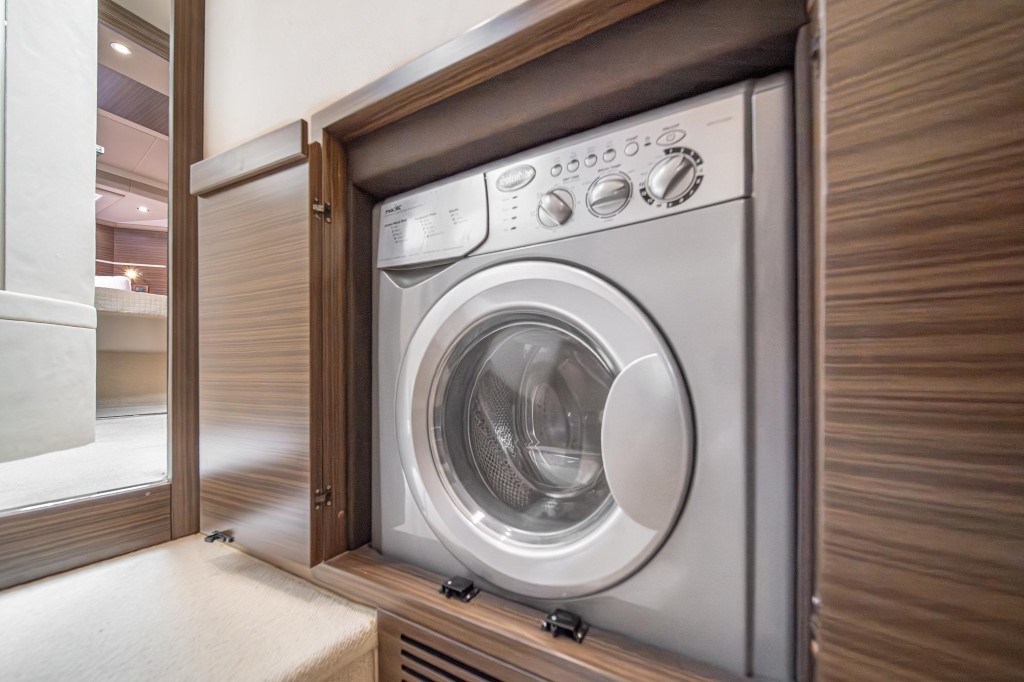

**Built to U.S. Specifications** Yacht Controller SeaView Lowering Arch Additional Seakeeper cntrl station on fly Barbecue on fly bridge Oskar cockpit chair (each) Cockpit table Crew Cabin with Air Conditioning Deluxe salon door curtain sliding on rails Floating Line (4" high - black) Glendenning cable master Hi-lo system for TV (TV not included) Icemaker in salon Mosquito nets for portholes Raymarine Platinum Package Refrigerator in cockpit Refrigerator on flybridge Safe in master cabin Salon Pouf w/table Seakeeper Stabilizer Set of linen (crew cabin excluded) Set of linen - crew cabin Set of linen - Sofa /Bed in salon Sunbathing cushions on aft flybridge w/ GRP Sunbathing cushions on bow Teak on flybridge deck Teak on side decks Two floodlights installed on aft flybridge Washer-dryer combo unit Wooden floor in salon & dinette & helm station Furniture in Zebrano prex ADVANCED PACK: Double Racor filters for main engines Easy Docking maneuvering joystick for engine and thrusters (Xenta) Electric mooring winches in cockpit Addt'l searchlight control at lower helm Chaincounter control at main helm Openable scenic windows in VIP cabin Spare conduits connecting engine room/wheelhouse/radar arch Water maker predisposition Miele appliances (microwave combo and cooktop) Soft Top (non foldable) C-shape sofa bed in salon Organized addt'l storage in fwd port side Helm area ILO skylight Dimmered lights in salon and master cabin Decor Upgrading

Standard Features:

Cockpit:

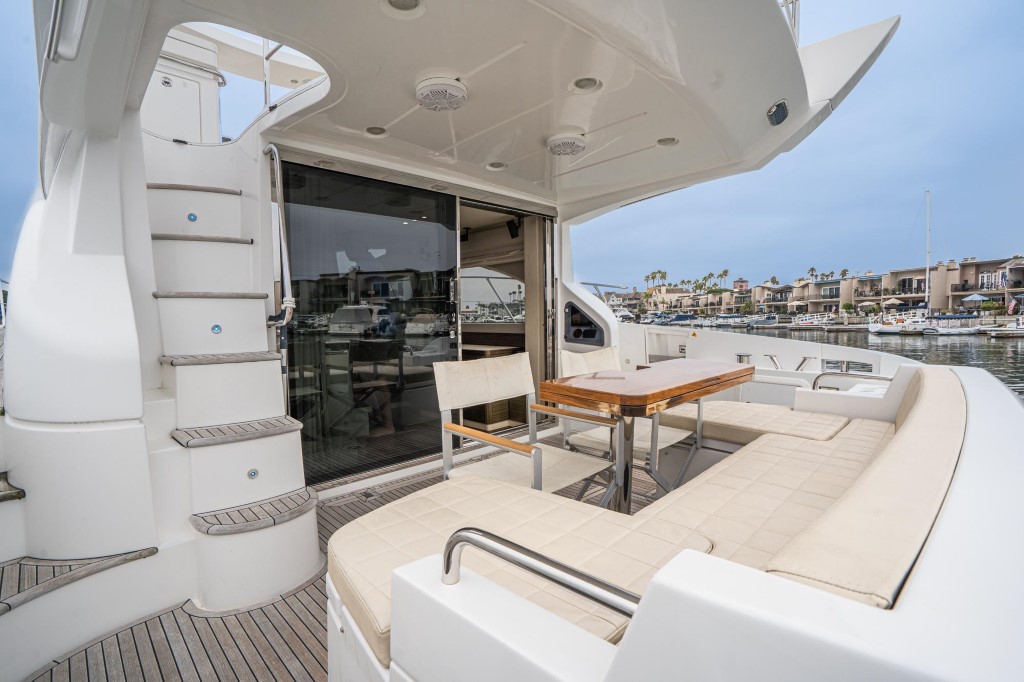

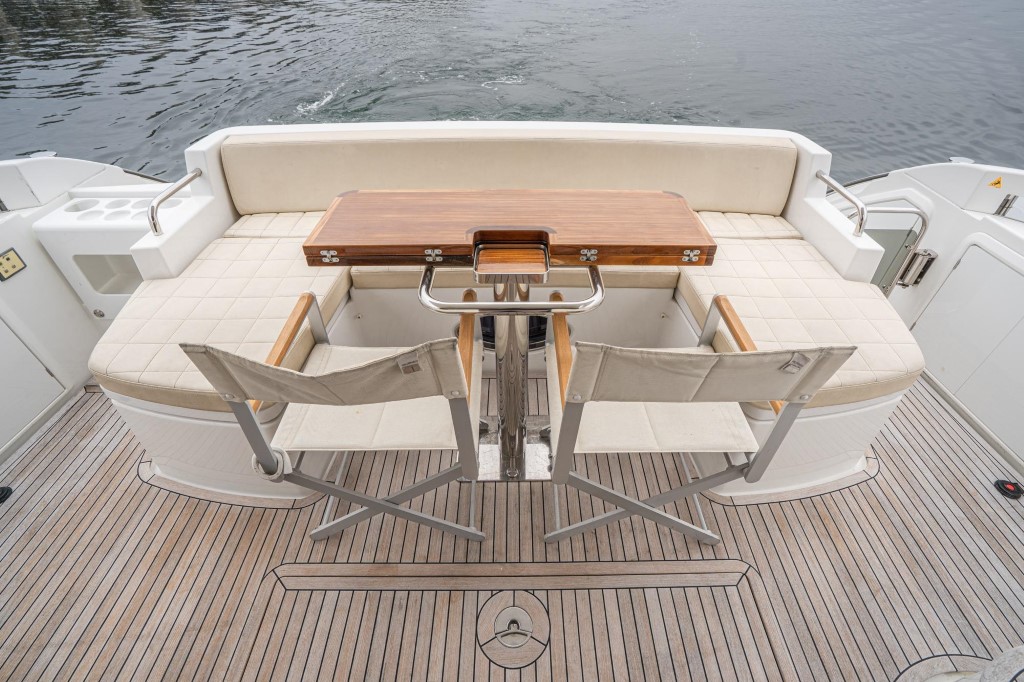

Cockpit access via stainless steel gate Aft stainless-steel left/right chock Vertical double door in stainless steel and tempered glass 4-seater C-shaped cockpit bench in GRP, integrated in deck Cockpit bench cushion  1 locker in the port deckhouse column  Engine room access via door in cockpit floor  Teak floor (excluding side walkway access steps)  Curved handrail on stern platform Handrail on flybridge access stairs Handles on the cockpit bench armrests  Lighting spotlights in cockpit ceiling panel  Shower head with hot and cold water.

Platform:

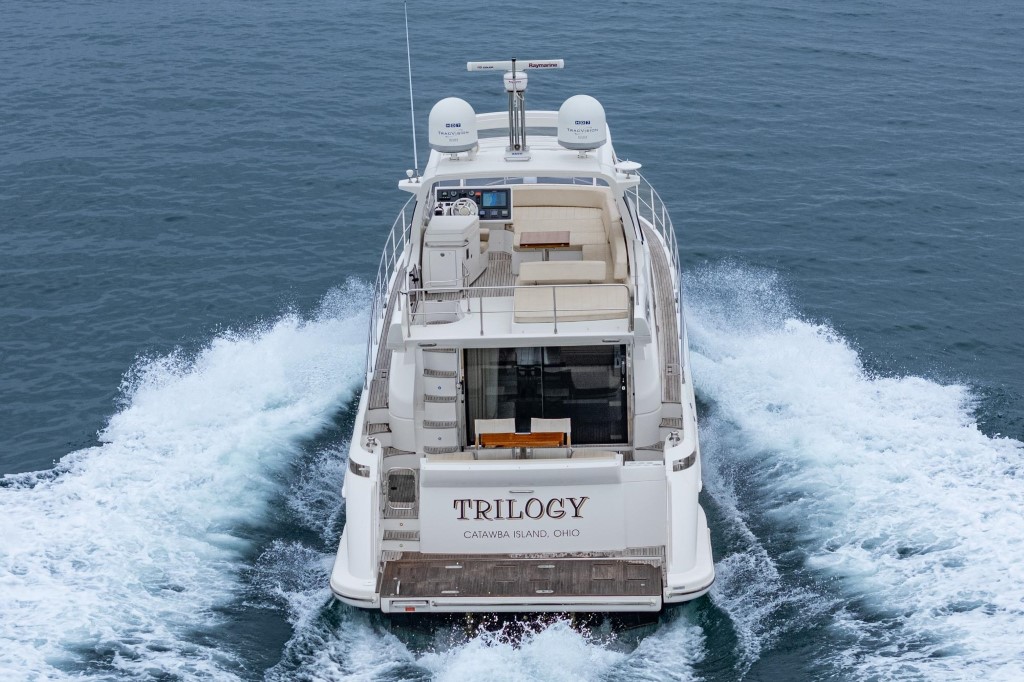

Stern platform lights Teak floor Stainless steel telescopic swimming platform (4 steps)

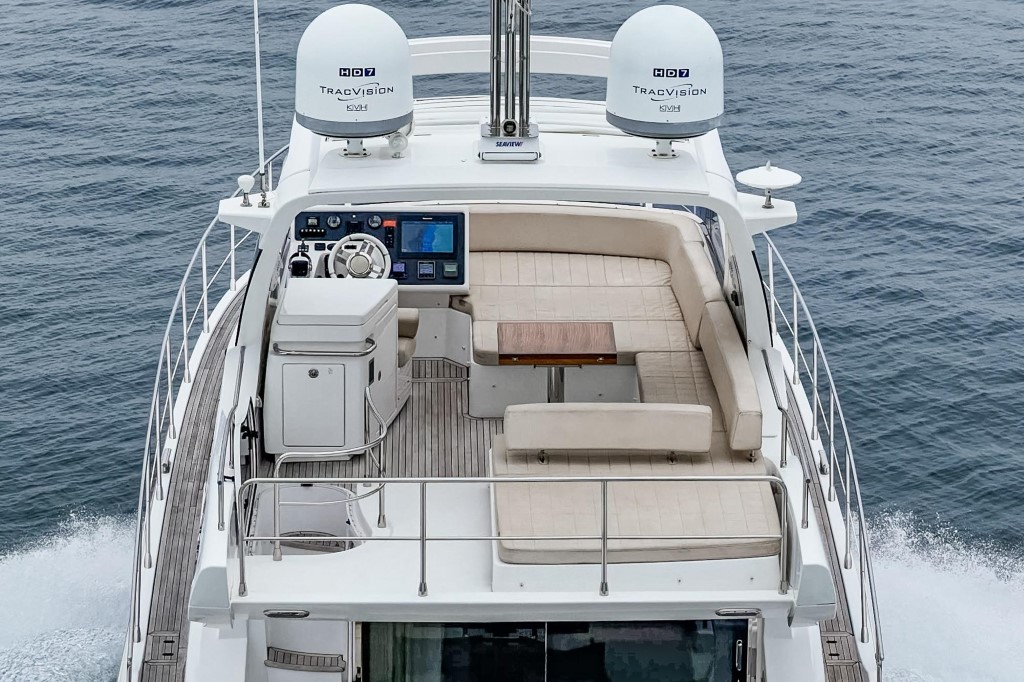

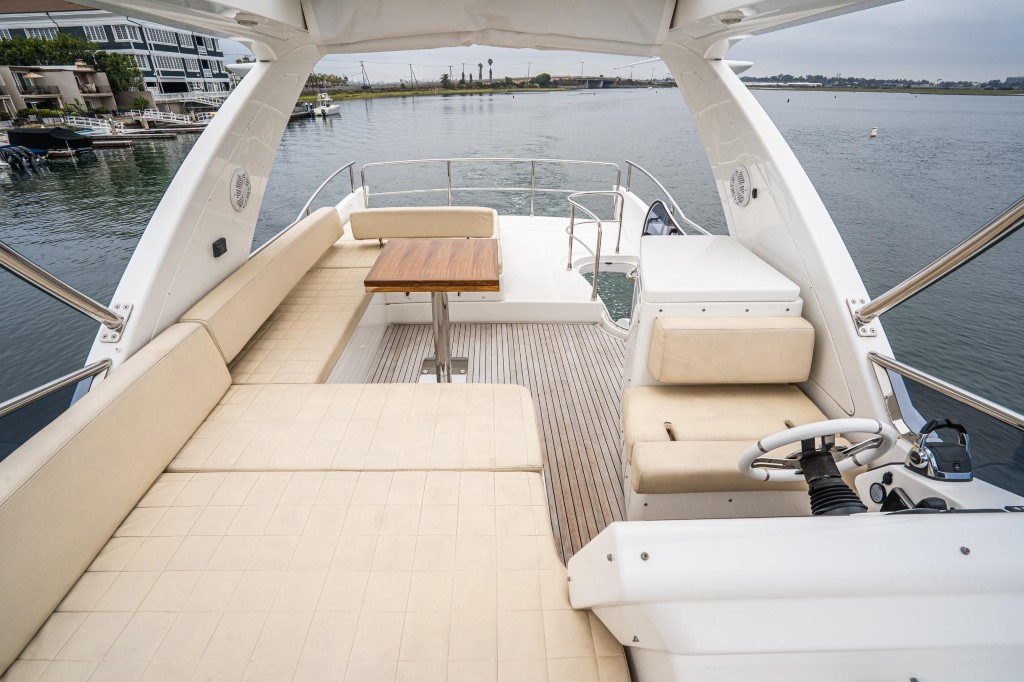

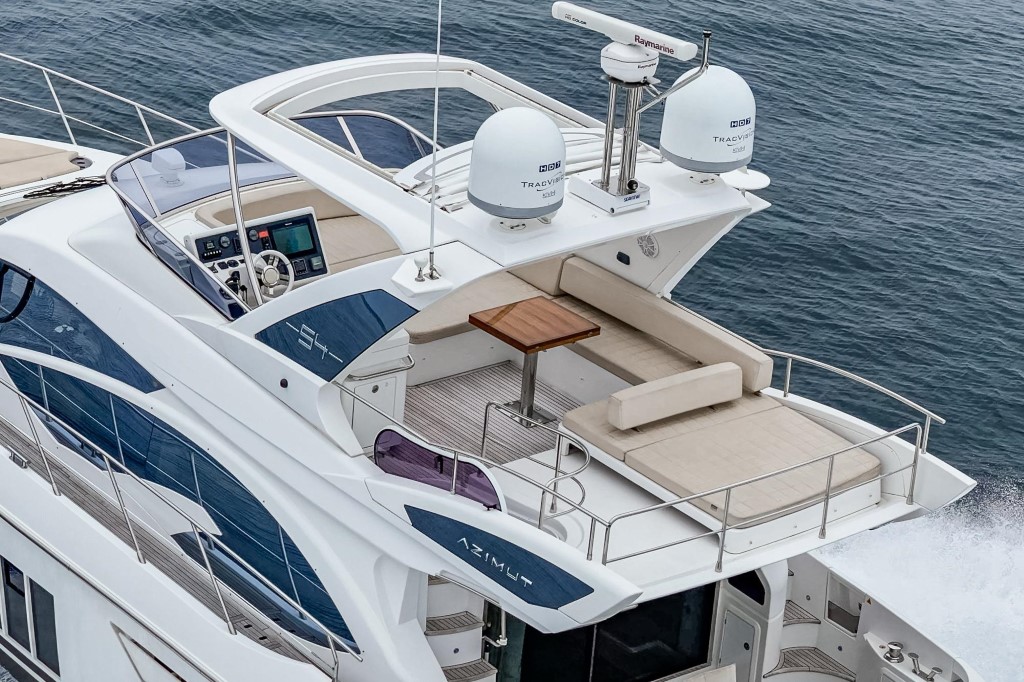

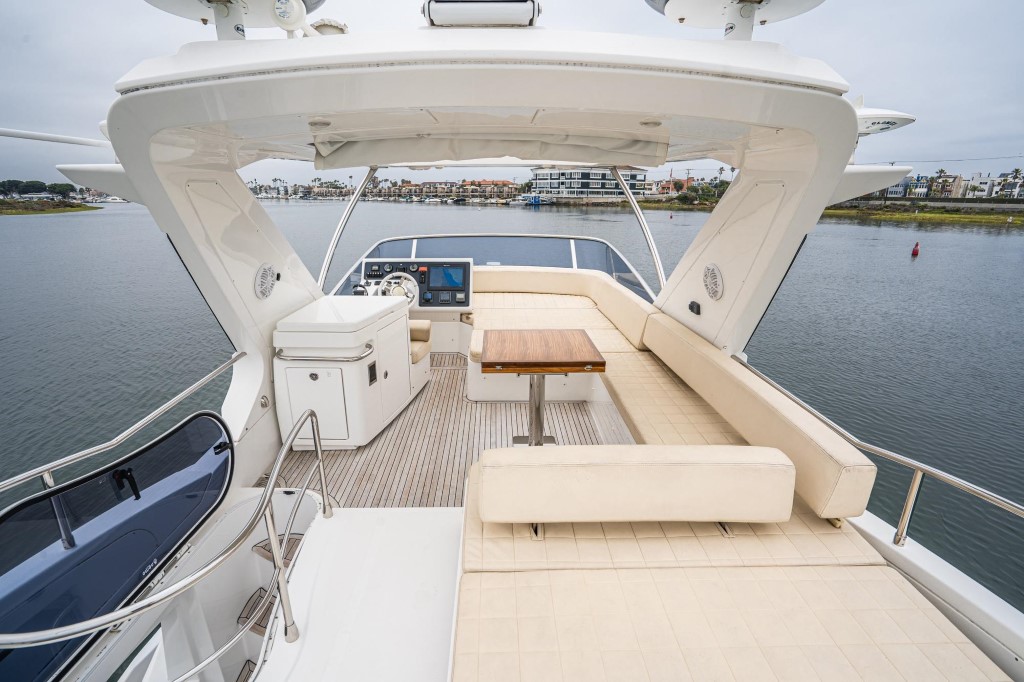

Flybridge:

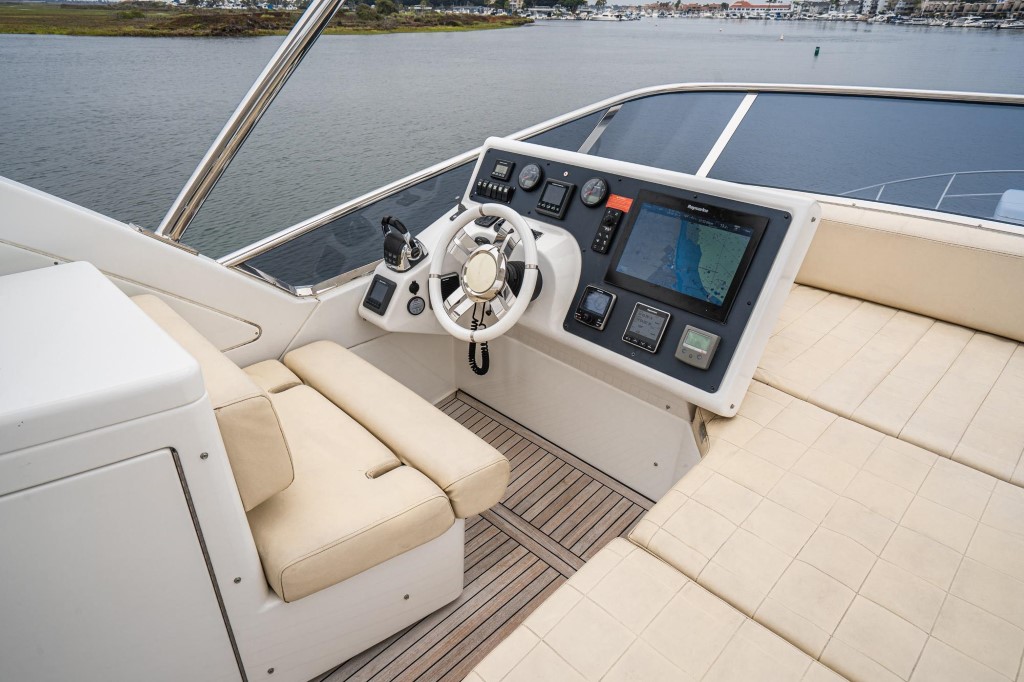

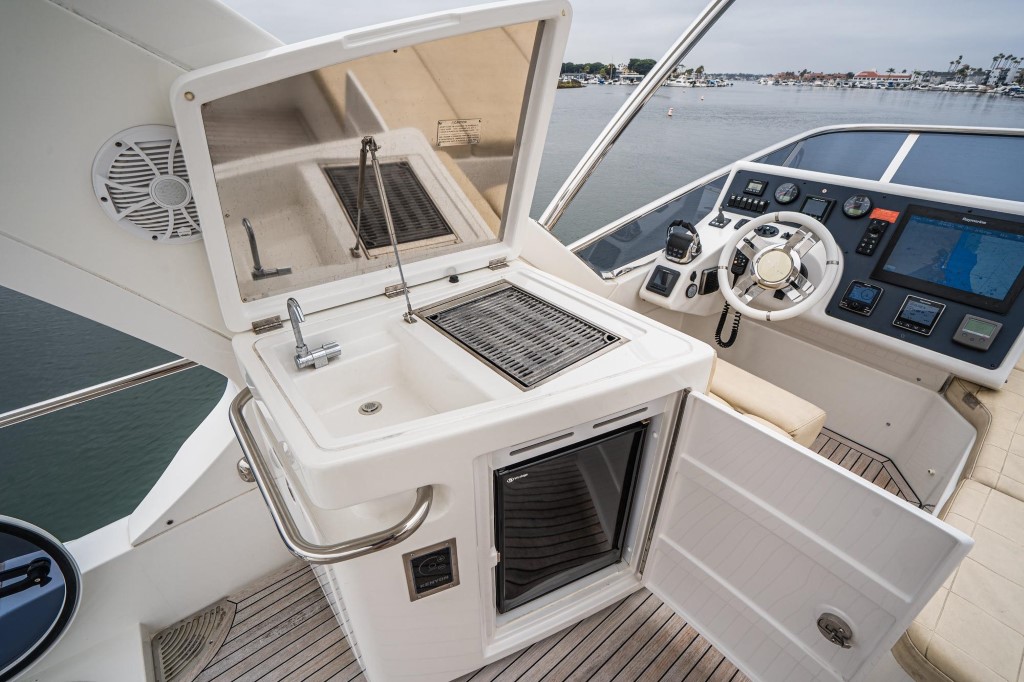

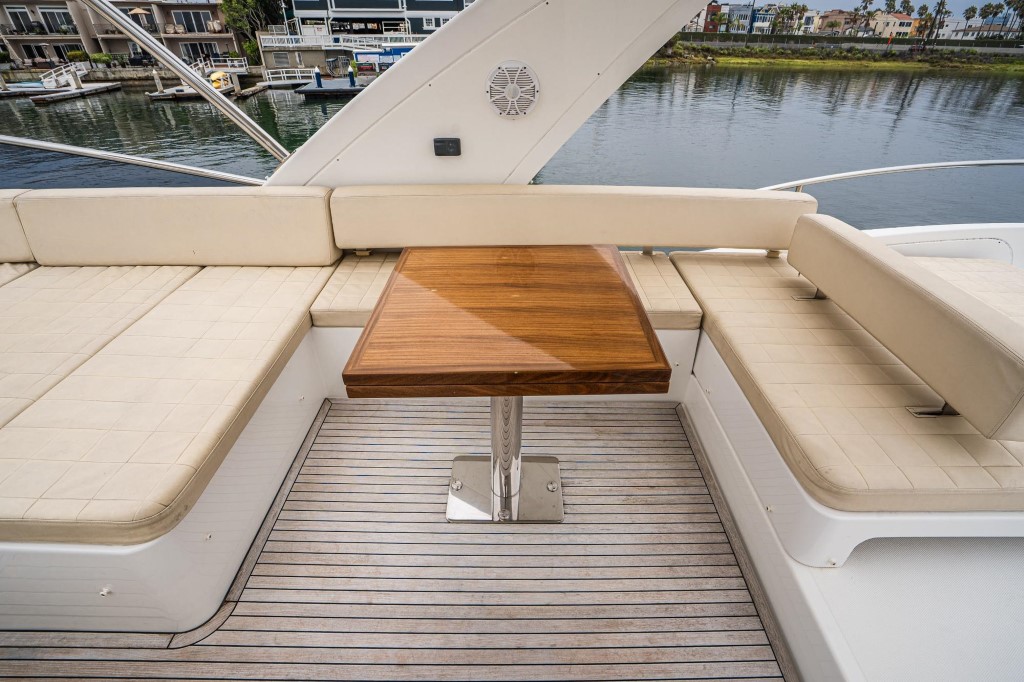

Ladder from cockpit, port side Teak decking Access door: water tight in aluminum and plexiglass  Bow Sundeck "L" shaped sofa joining with the sundeck Teak table with central stainless steel leg 1 bow locker (in front of instrument board)  Garbage bin in fly cabinet Washbasin (cold water) Manual spotlight Stainless steel light mast

The wheelhouse includes:

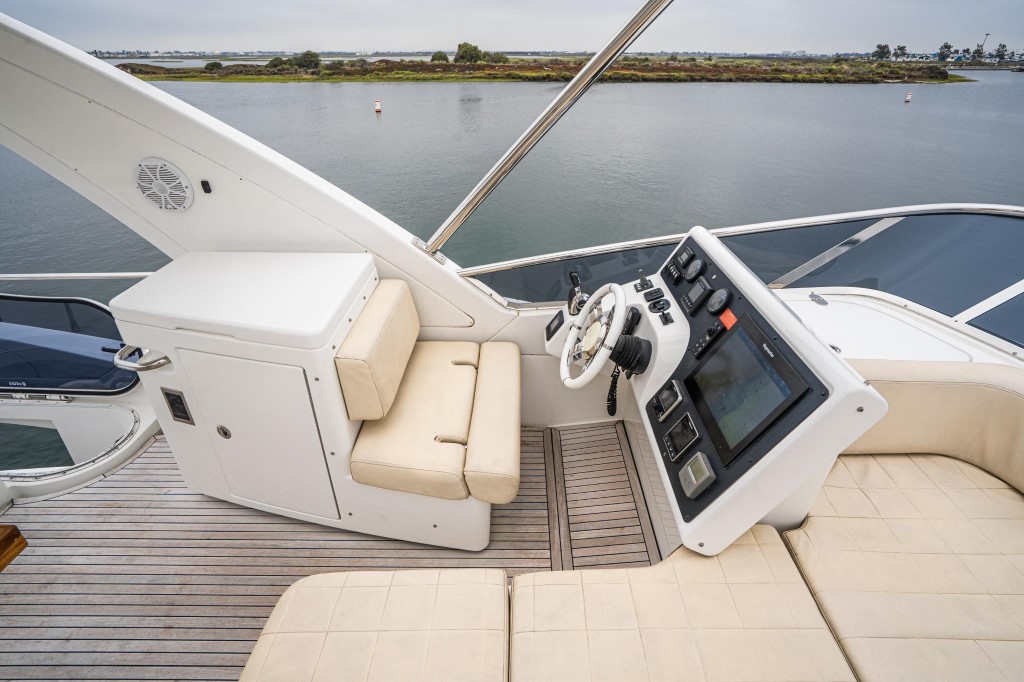

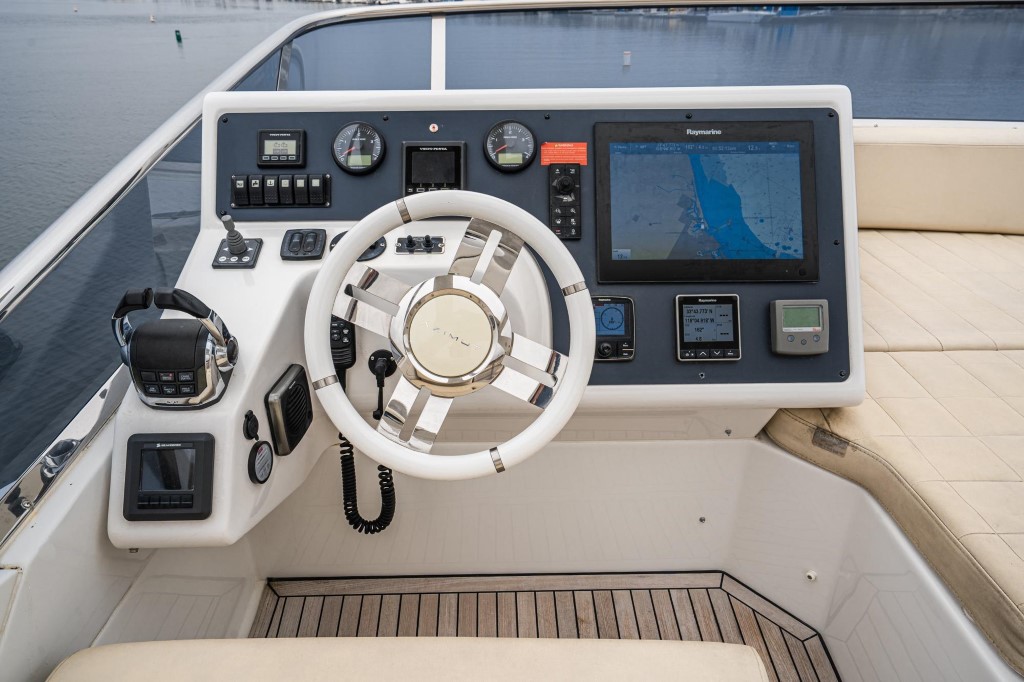

Main engine instruments (thermometer, rev counter)  Alarm indicator lights Engine start up controls Bow anchor winch controls Horn control Trim tab control Bow thruster control  Adjustable spot activation  12V socket Chain meter counter

Interior Accommodations:

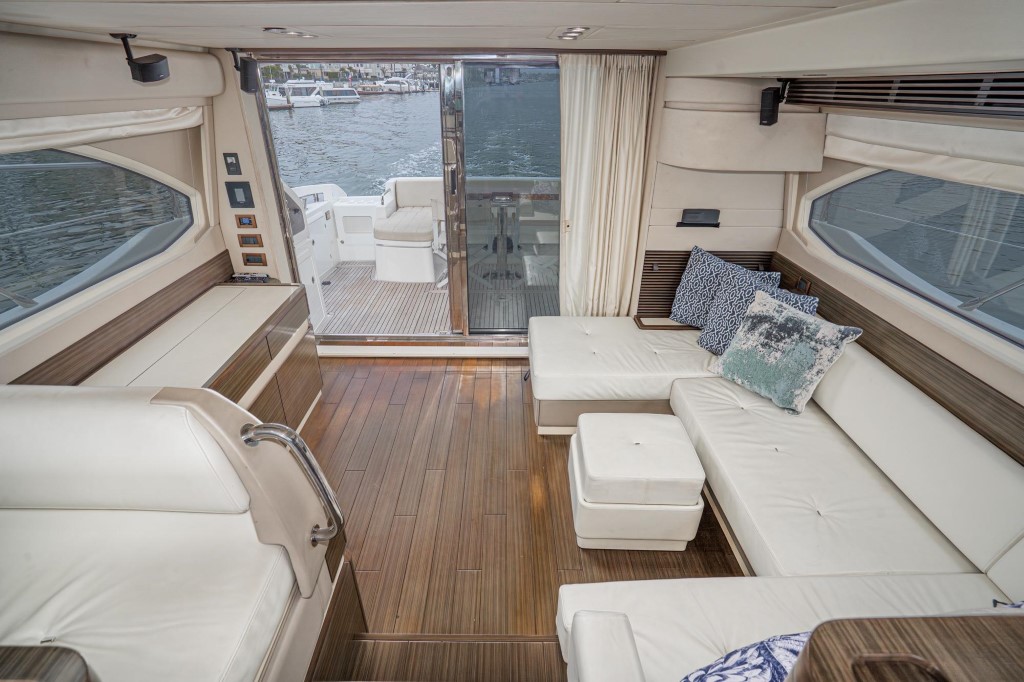

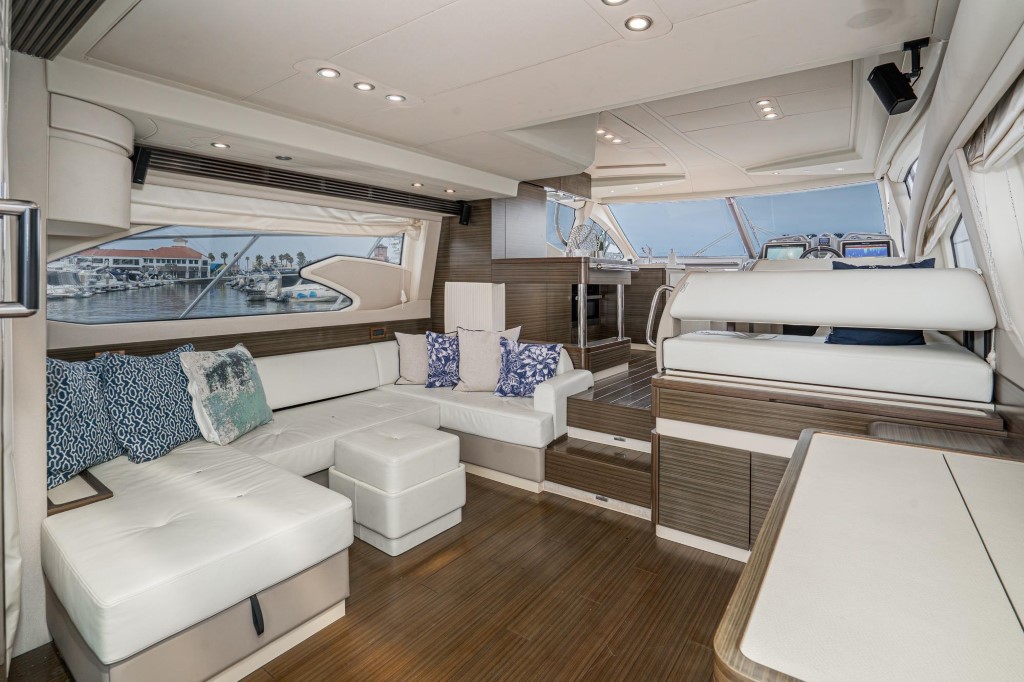

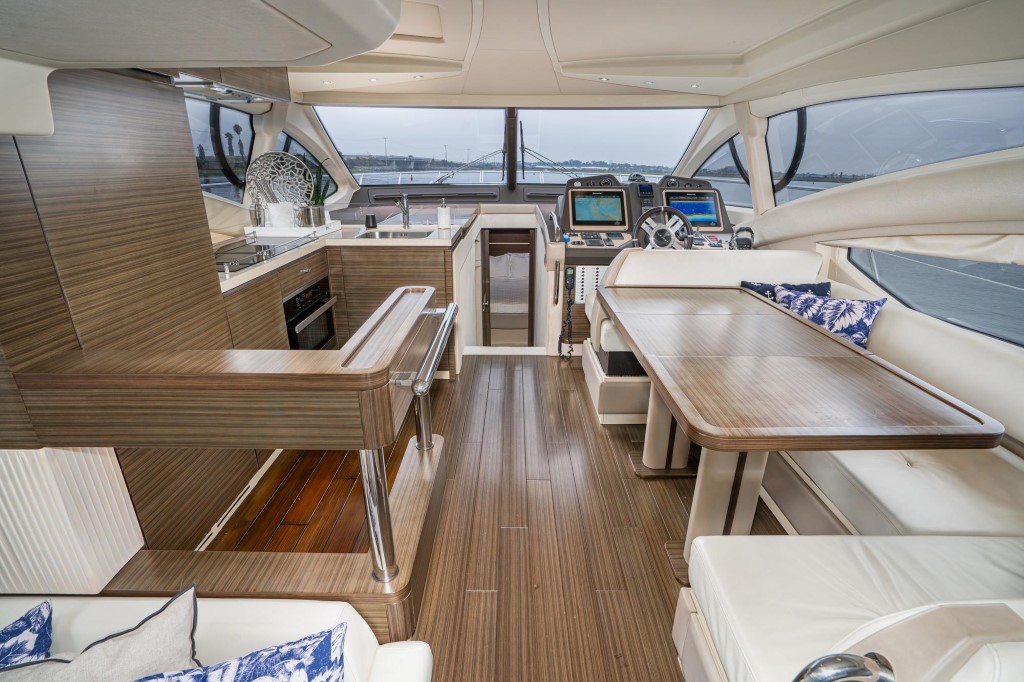

Salon & Dinette:

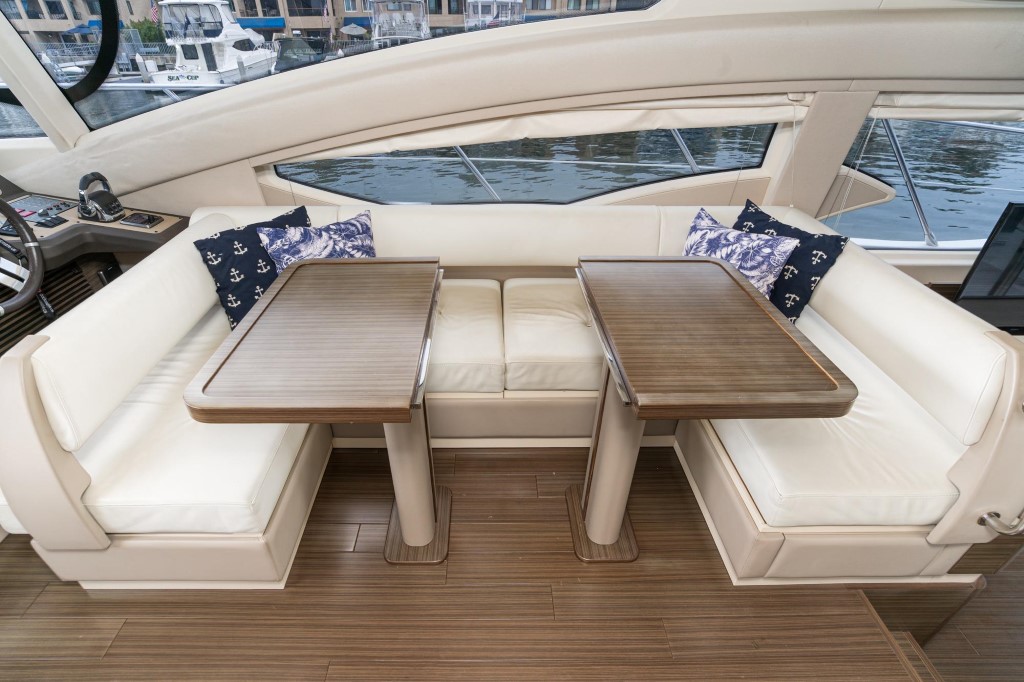

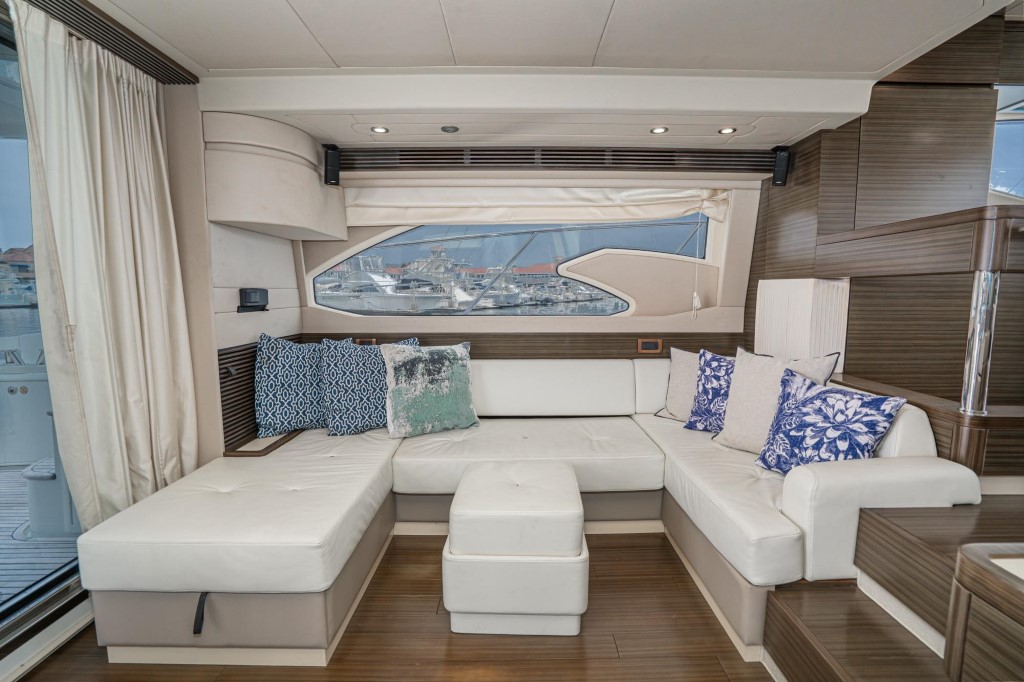

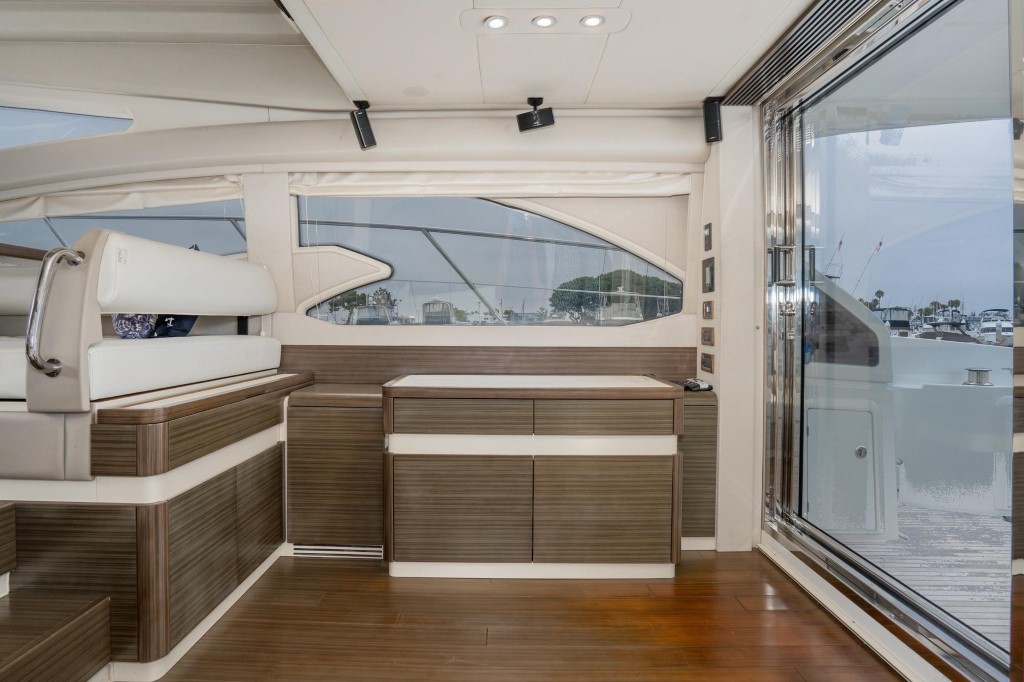

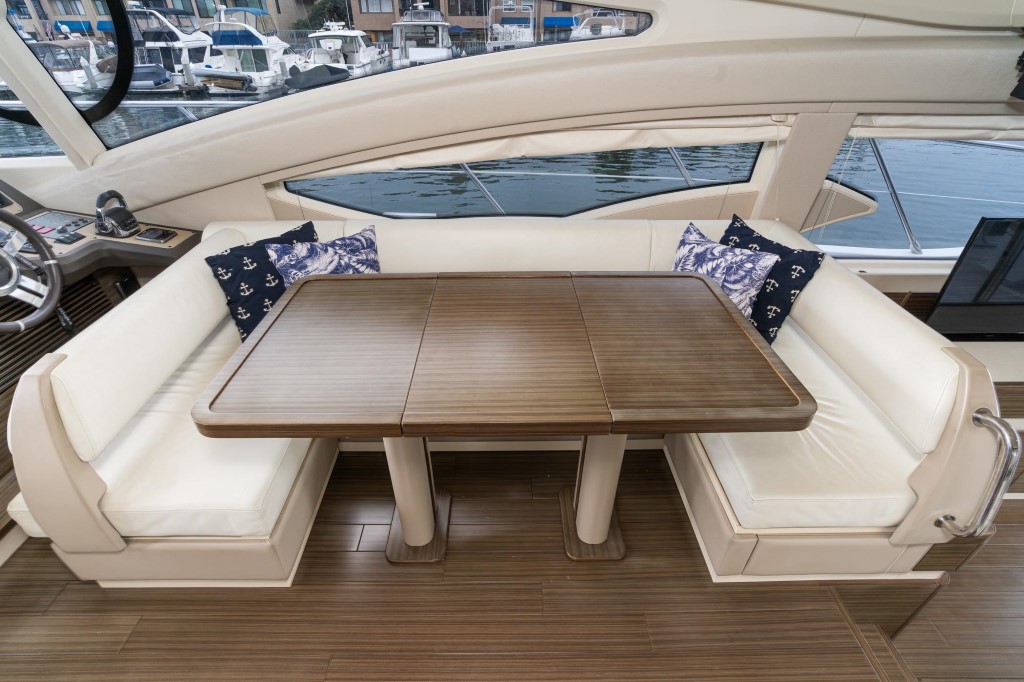

Bargeboards and window frames in matte fiberglass 1 "C" shaped sofa for 4-6 people on the port side of the salon-standard smooth fabric covering Rectangular table in dinette for 6 people. The central part of the top can be removed and stored in the compartment below the aft sofa cushions. TV system with aerial, sockets in salon and owner's cabin. Below deck accommodation ladder with carpeted steps ceiling and wall upholstery: 2 tone fabric Roman blinds for windows and privacy curtain for salon door

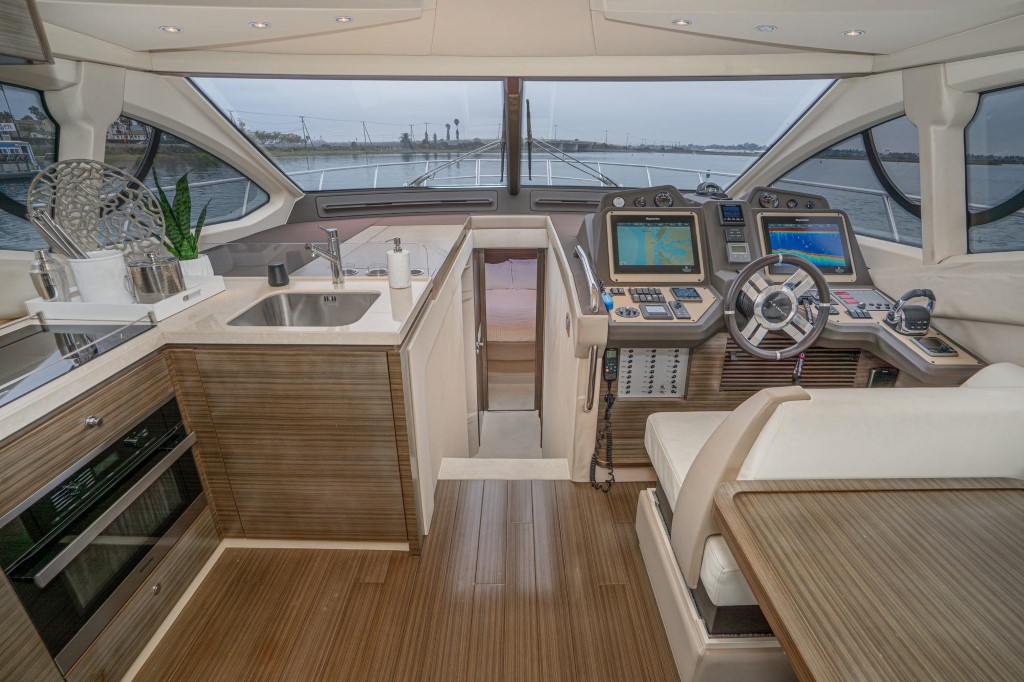

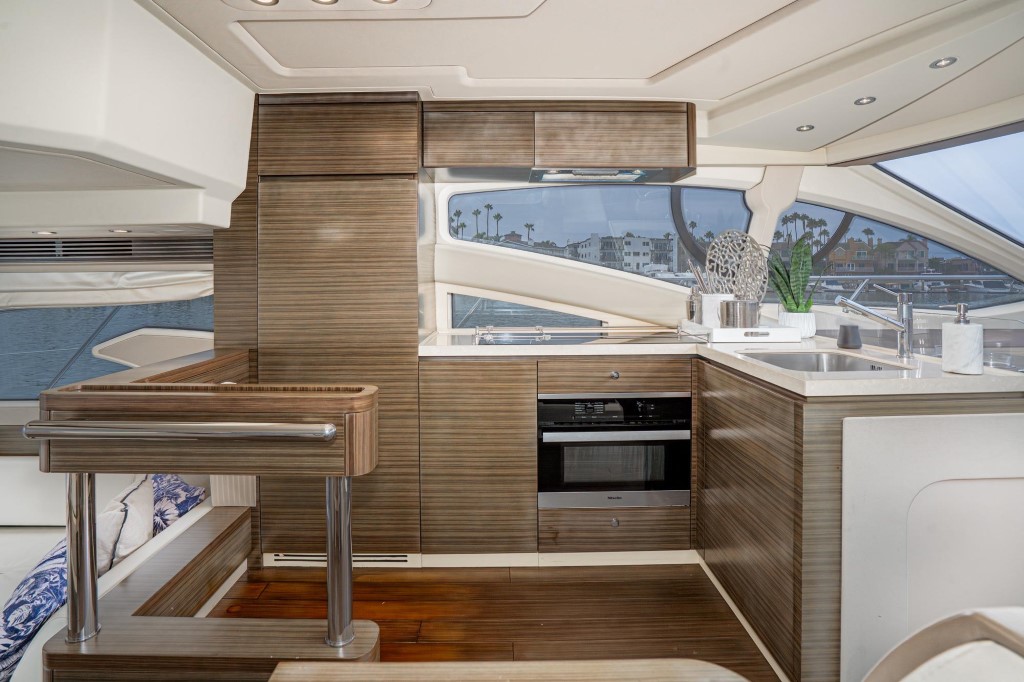

Galley:

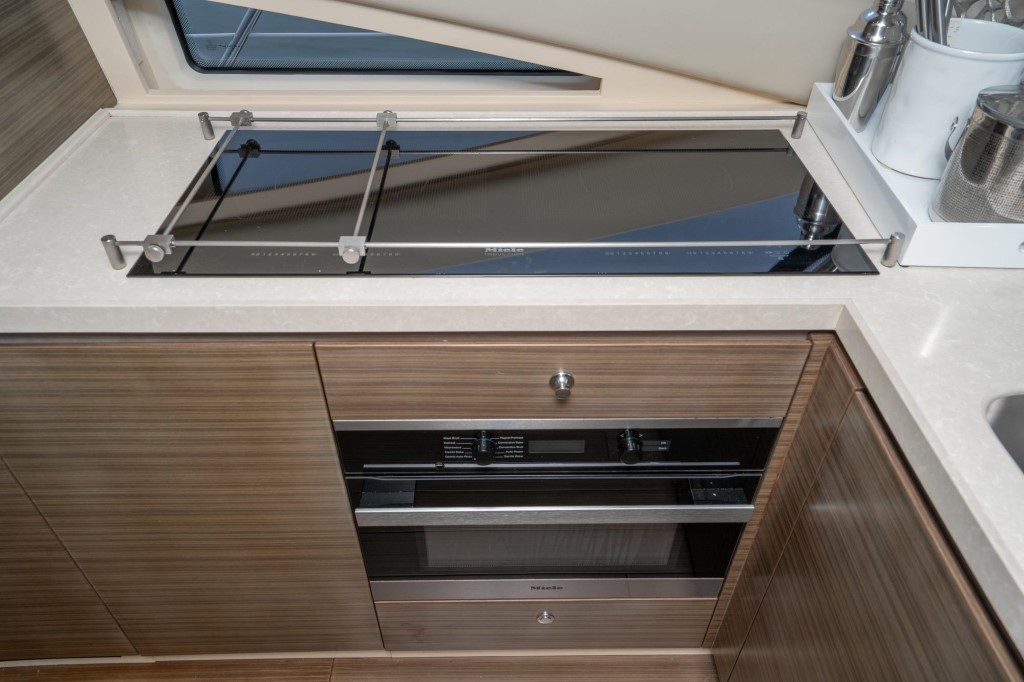

Oak flooring Silestone blanco city worktop Glass ceramic range with 3 aligned plates and pan holder Hood installed in the wall unit above the range, with active carbon filters (recirculation) Microwave Oven + Grill Sink Fridge + upright freezer Electric window

Corridor:
Below deck access corridor with carpeted floor Courtesy lighting Corridor grabrails

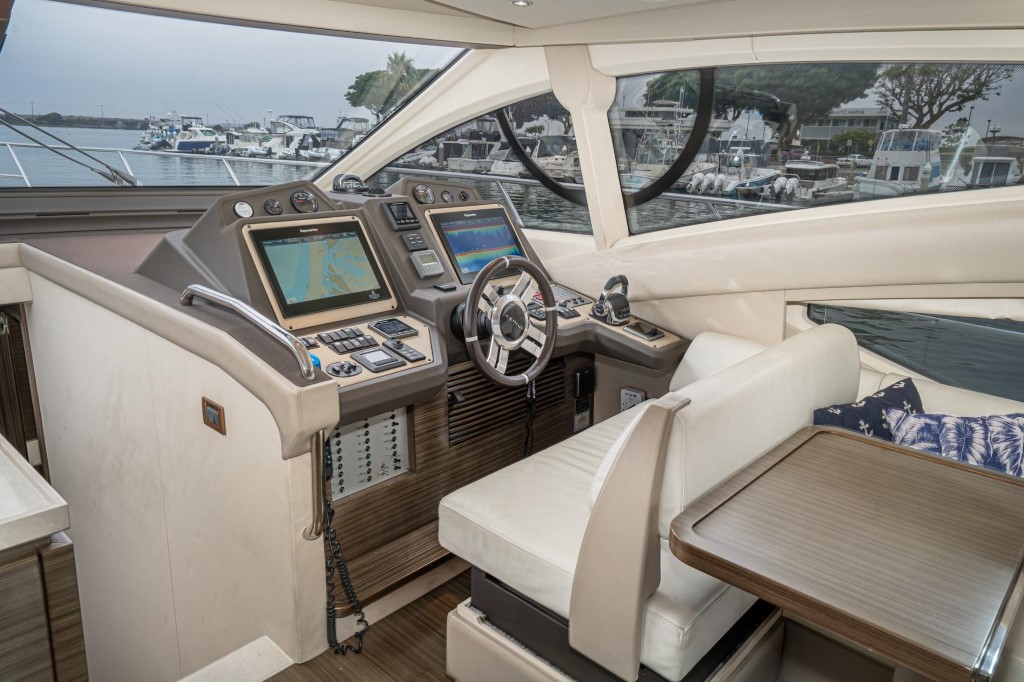

Helm:
Electric helm seat with 2 places (reversible seat for use with dinette too) adjustable seat and sprung backrest Electric window Adjustable steering wheel

The wheelhouse includes:

Bow thruster controls  Electronic remote controls  Trim tab switches Trim tab indicators  Bow anchor winch activation Horn, navigation lights, wiper switches Activation of bilge pumps Side window opening Emptying of black and gray water tanks  Engine room ventilation Cigarette lighter socket Shore power socket indicator light Chain washing pump switch Fuel, gray water, fresh water tank level gauge  Engine start-up Rev counter 1 engine data display Ammeters Alarm indicator lights

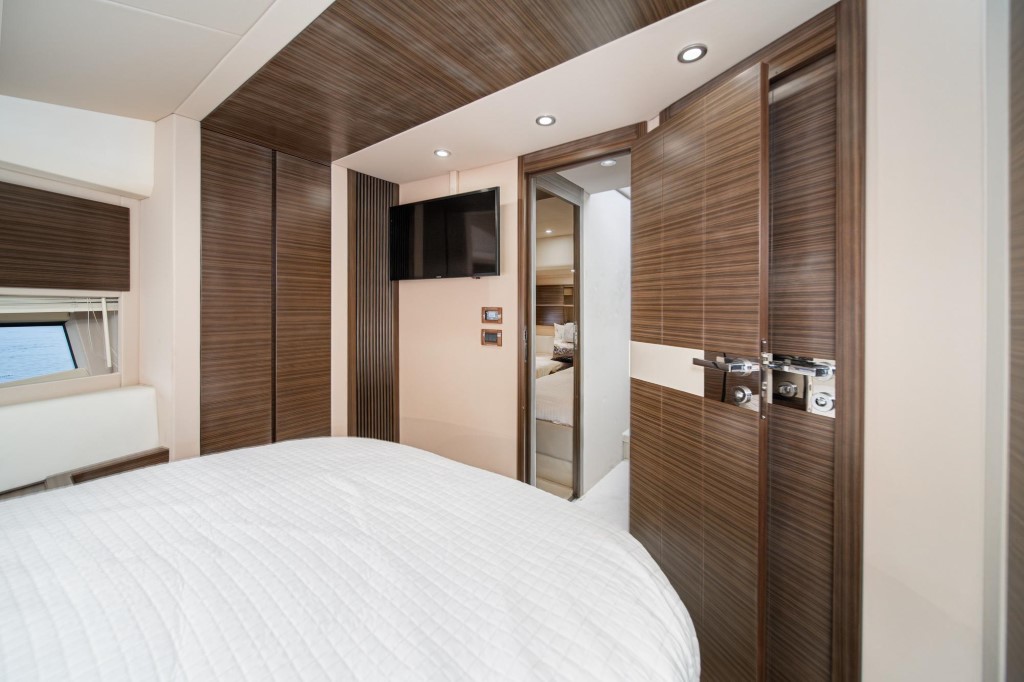

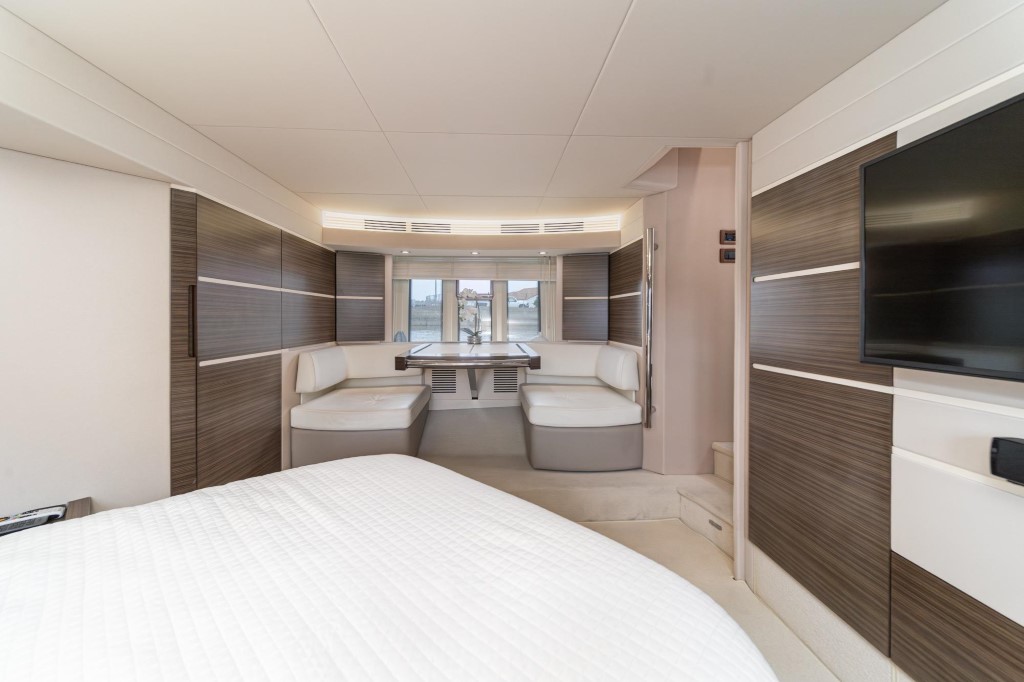

Owners Cabin and Head: Located Midship

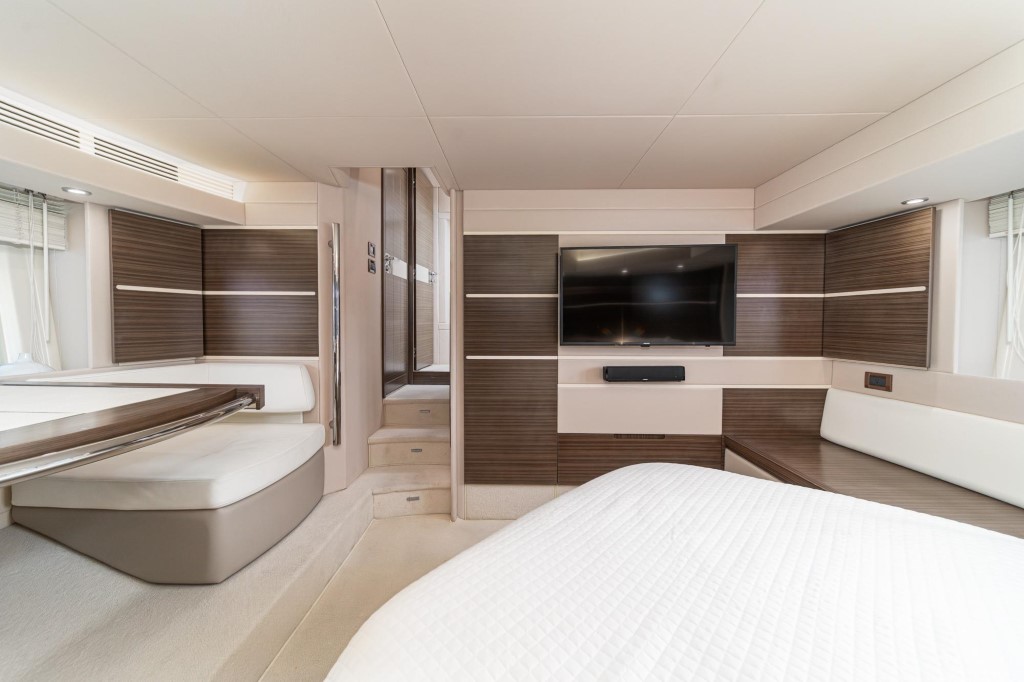

Diagonal double bed with headboard on starboard side with storage space below Dinette 2 wall units Drawer unit with 1 drawer 2 wardrobes with hanger bars 1 wardrobe with shelves Shelf around the bed Spotlights and lighting strips on ceiling 2 openable portholes (rectangular portholes inserted in the window) 3 + 3 rectangular hull windows Hatchway: emergency exit from ceiling panel above the bed Direct access to the head from the corridor leading to the owner's cabin with internal stairs Mirror in the stern wardrobe Venetian blinds on the windows Fabric wall upholstery and oak wood paneling Fabric ceiling panels TV system in owner's cabin

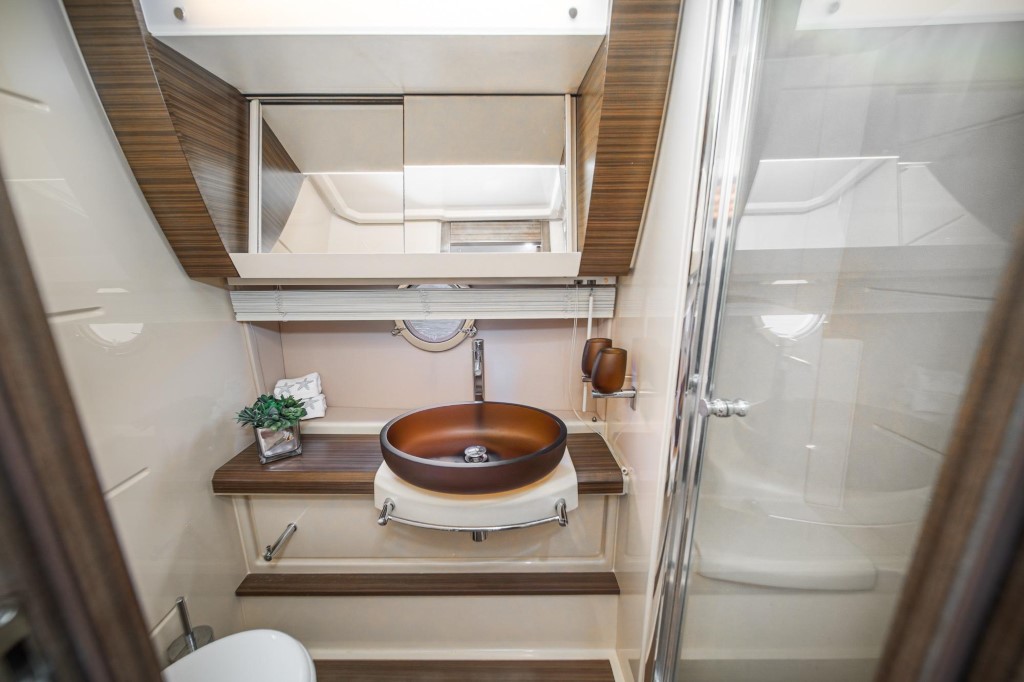

Owners Head: Located prior to the owner's cabin on the port side (under galley). Access from owner's cabin (via ladder)

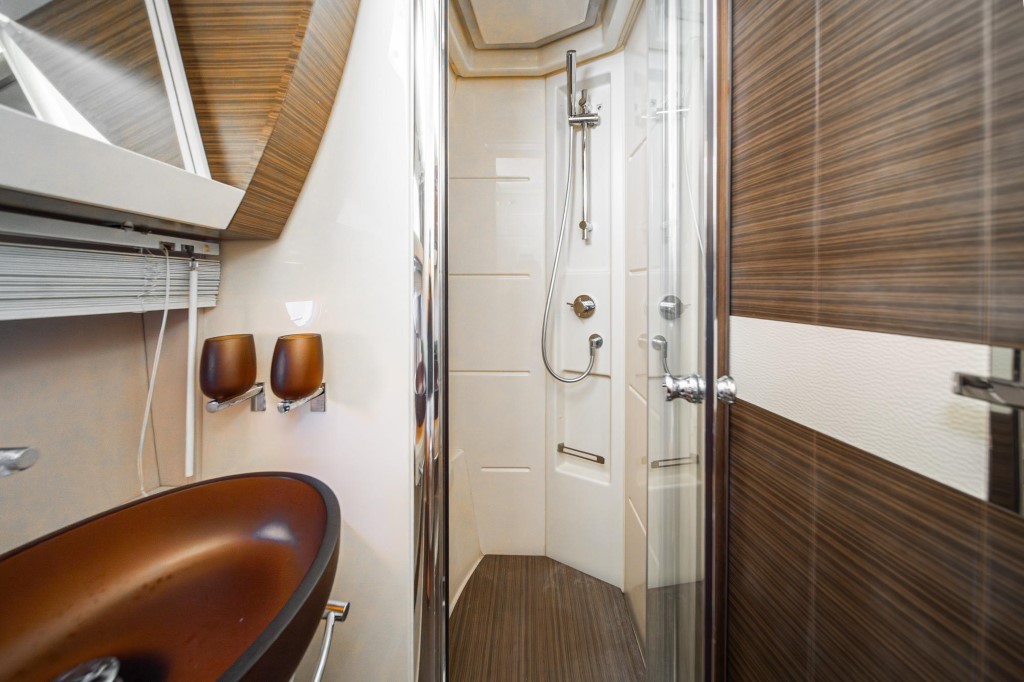

Oak top and oval washbasin cognac - Vetro Freddo TECMA toilet Chromed mixer tap  Separate shower enclosure; flat shower door  Shower column and seat in matte ABS Wall unit with 2 sliding panels above washbasin Ivory-colored ceiling panels

VIP Cabin and Head: Located in the bow

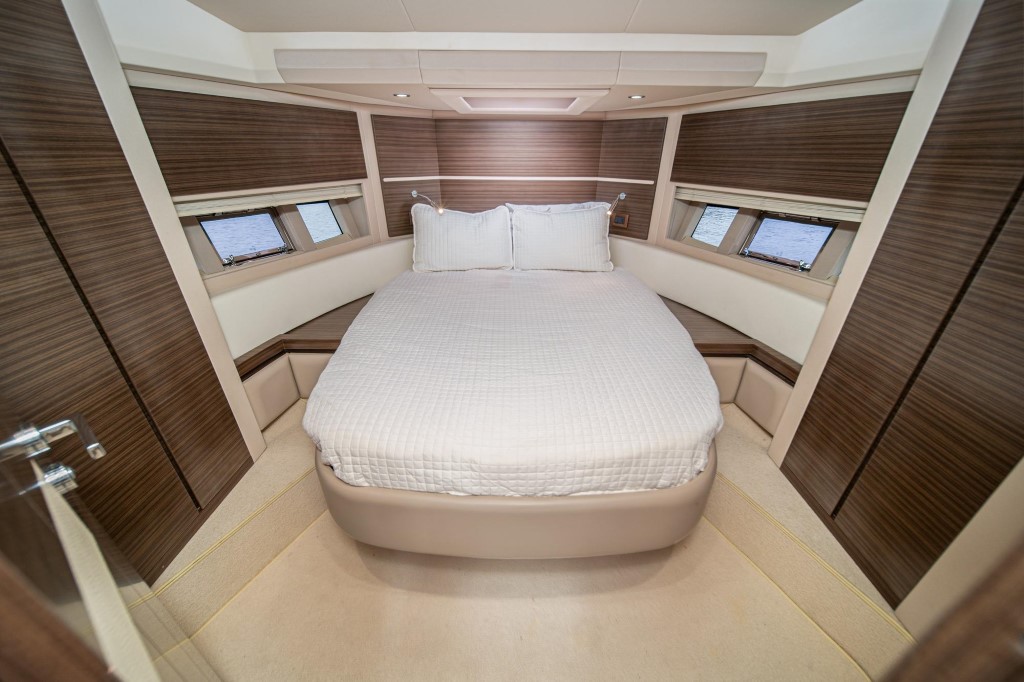

Fixed double bed Fixed oak headboard 2 wall units above the windows 1 wardrobe with hanger bar and shelves on the starboard stern wall  1 wardrobe with hanger bar on port stern wall  Shelves on bulwark (bed side) 2 under- bed lockers 2 wall lights on headboard Spotlights on ceiling  Direct access to guest head Carpeted floor Windows Hatchway  Wooden Venetian blind Fabric bulwark upholstery Ceiling panels: oak portal, matte ivory GRP ceiling panel with fabric panels above the bed

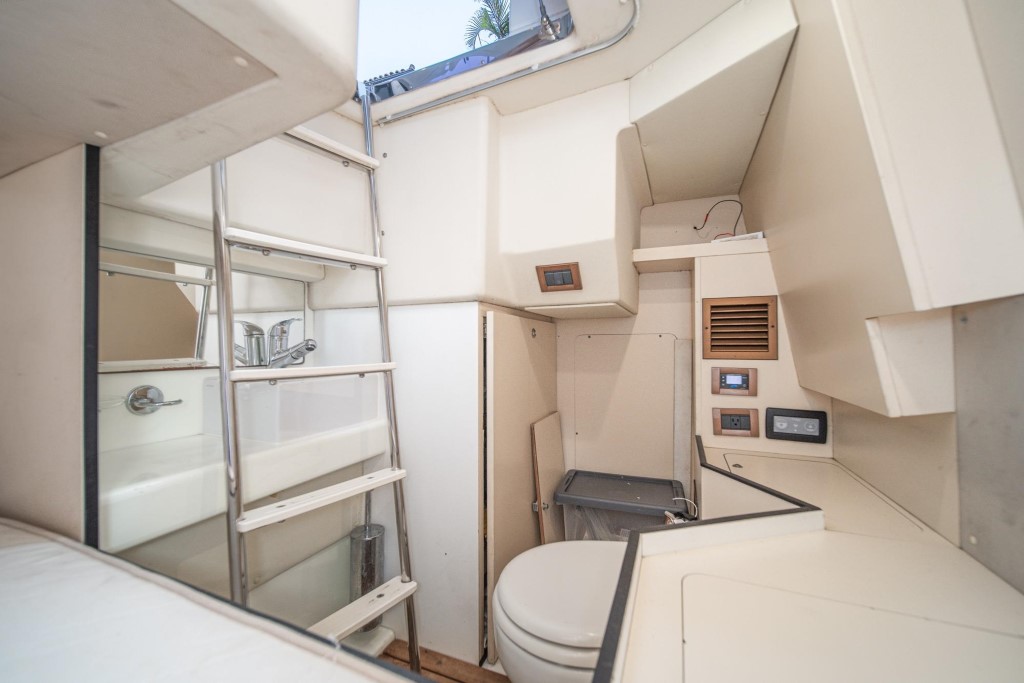

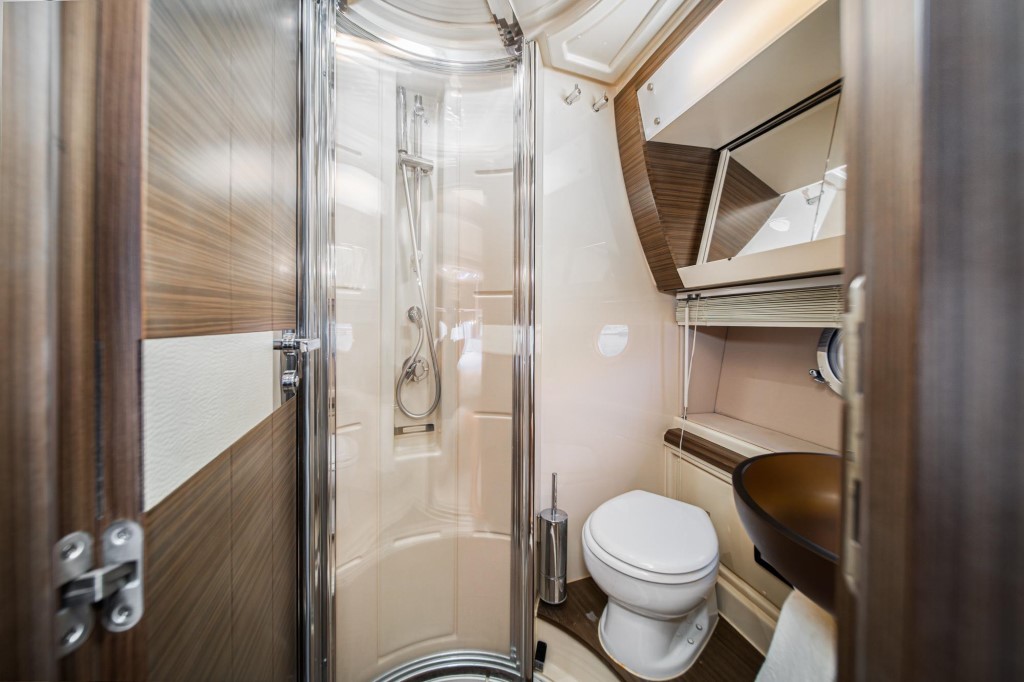

VIP Head: Positioned abaft of the VIP cabin on the port side. Direct access from the VIP cabin or from the corridor

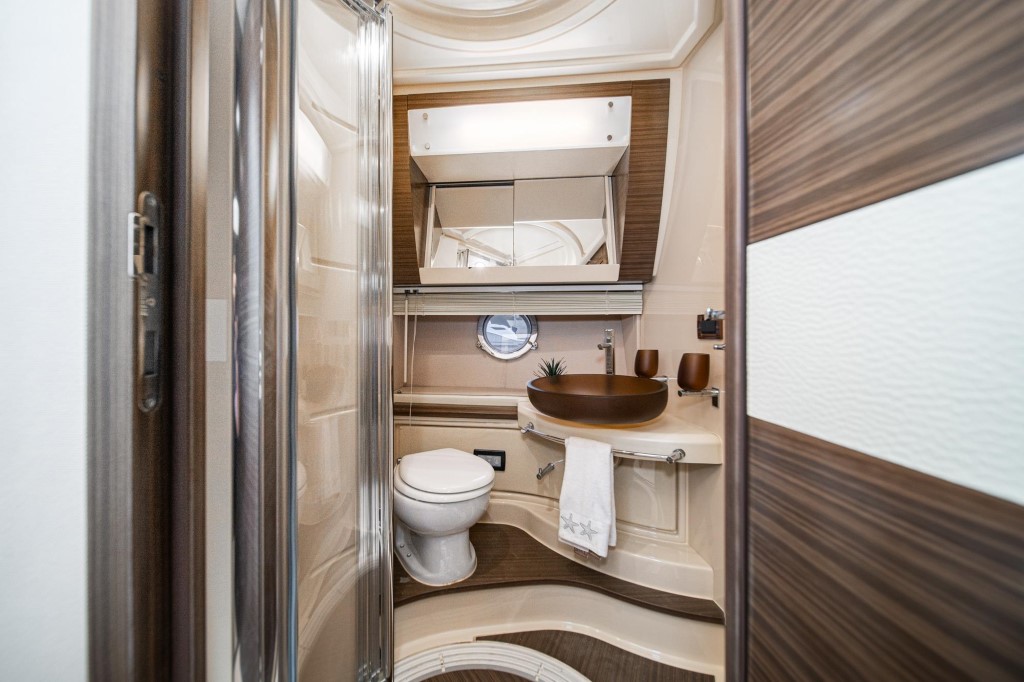

TECMA toilet Oak top and oval washbasin cognac (brown) Vetro Freddo Chromed mixer tap 3-door round shower, not separated Shower column in matte ABS Wall unit with 2 sliding panels above washbasin Lighting: ceiling light on wall unit, and spotlights in the shower 1 openable round porthole with wooden Venetian blind Floor in oak, with grating in solid wood Natural air extraction Air conditioning delivery from VIP cabin

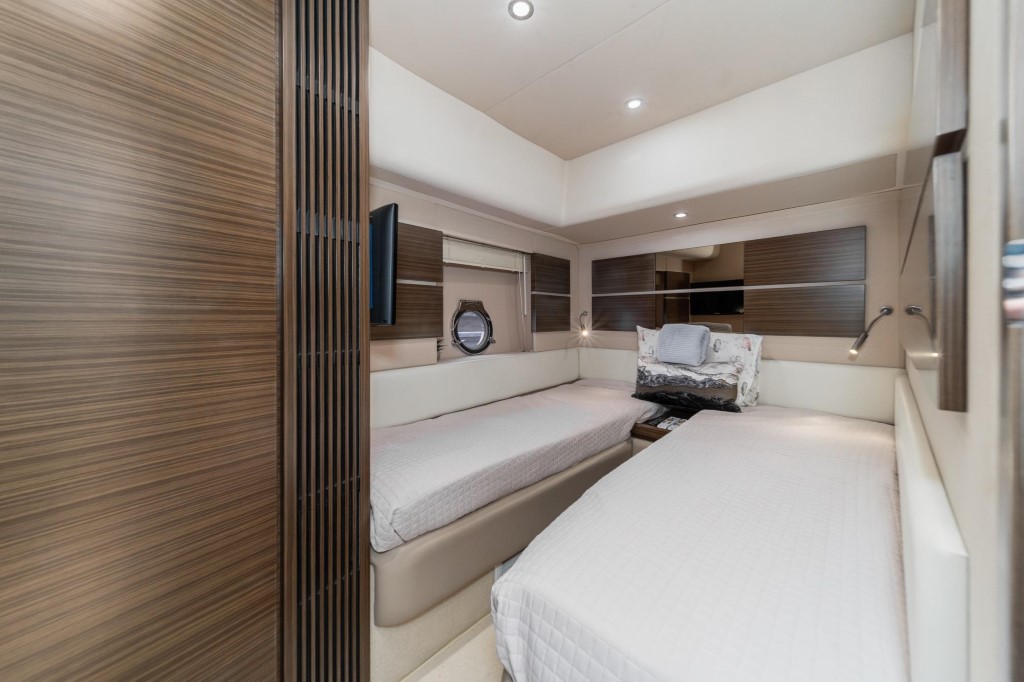

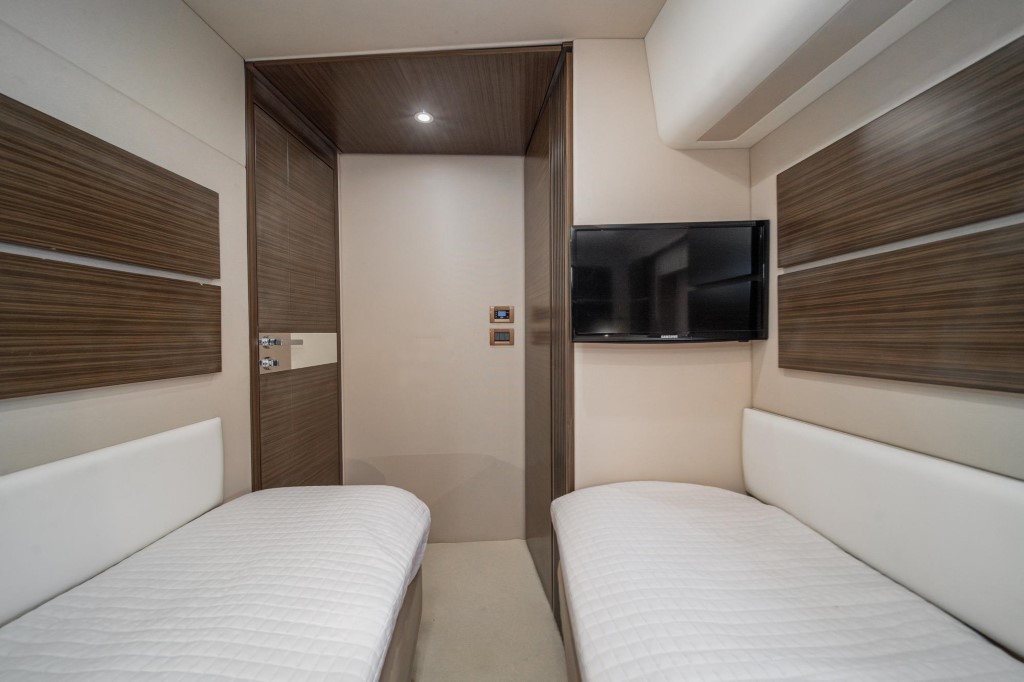

Guest Cabin: Located on starboard side

2 single beds, fixed Headboard with oak panels 1 central nightstand between the beds (with openable compartment)  1 wardrobe with hanger bar and shelves  3 under bed lockers Ceiling panels: oak portal and ivory GRP ceiling panel with fabric panels Fabric wall upholstery (with oak and fabric paneling) 1 openable round porthole Wooden Venetian blind Flooring: carpet Lighting: spotlights 2 wall lights on headboard

Electrical System:

Shore-powered power supply Onboard voltages: 120V-60Hz AC 24V DC 12V DC The main panels are installed in the wheelhouse, above the galley fridge, in the engine room, and in the crew cabin The power circuit breakers protecting all the 24V utilities are in the wheelhouse In the galley (above the fridge) there are other power circuit breakers that protect the various 220V AC utilities, as well as the 220V AC shore or generator source selectors; the 220V power circuit breakers for the air conditioning system are also located here On the main panels in the engine room and crew cabin you will also find additional power circuit breakers for the various 24V DC utilities 2 connected tanks of 1170 l each (total capacity 2340 l), in aluminium  Electronic gauge in wheelhouse (port tank) Optical gauge on tank (starboard tank) 2 single filters (decanters) for engines + 1 filter for generator  2 inlets on walkway 2 vents on bulwark Remote diesel shut-off via 24V solenoid valve Fuel drawing tap on port tank

Fresh water system:

A 590-liter polyethylene tank below the cabin descent ladder (access area) (aft tank). With aluminium frame and GRP cradle Water filling on starboard side walkway Level sensor with electronic gage in wheelhouse 1 tank discharge on the bulwark Water pressure pump in engine room 60-liter water heater in engine room, above the air-conditioning compressor Suitable for water supply connection direct to pier Hot/cold water pipe: heads, galley, swimming platform shower head, Cold water only in flybridge washbasin; Cold water only in engine room. Fresh water toilet flushing System that can be divided by ACORN manifolds

Black water system:
175-liter polyethylene tank below the VIP cabin (fore tank) Level sensor (2 levels) 1 tank discharge on bulwark with anti- odor filter 1 FEIT PVM 0.2 macerator pump Intake from deck walkway Tecma toilet (with macerator pump).  All the toilets discharge into a tank.  Sea outlet from tank (manual only)

Gray water system:
175 l polyethylene tank located under accommodation corridor (central tank) Gray water outlets directly into the sea from bulwark raisers Level sensor (2 levels) with alarm indicator in wheelhouse Water discharge: from tank (automatic / manual)  Diaphragm pump Fancoil condensation discharge into collection tank

Seawater system:

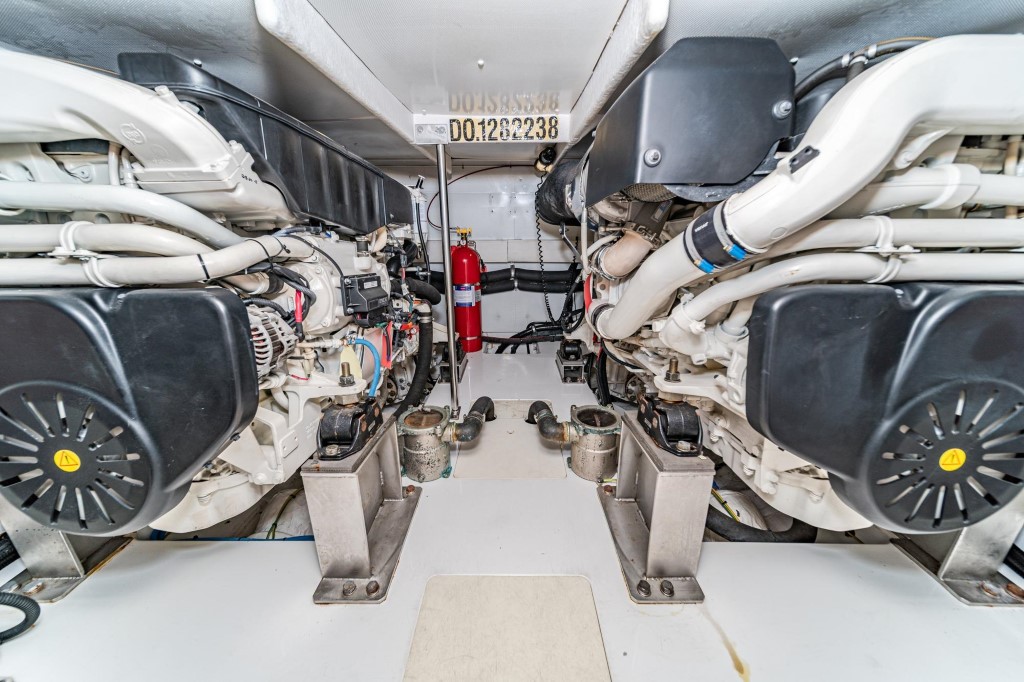

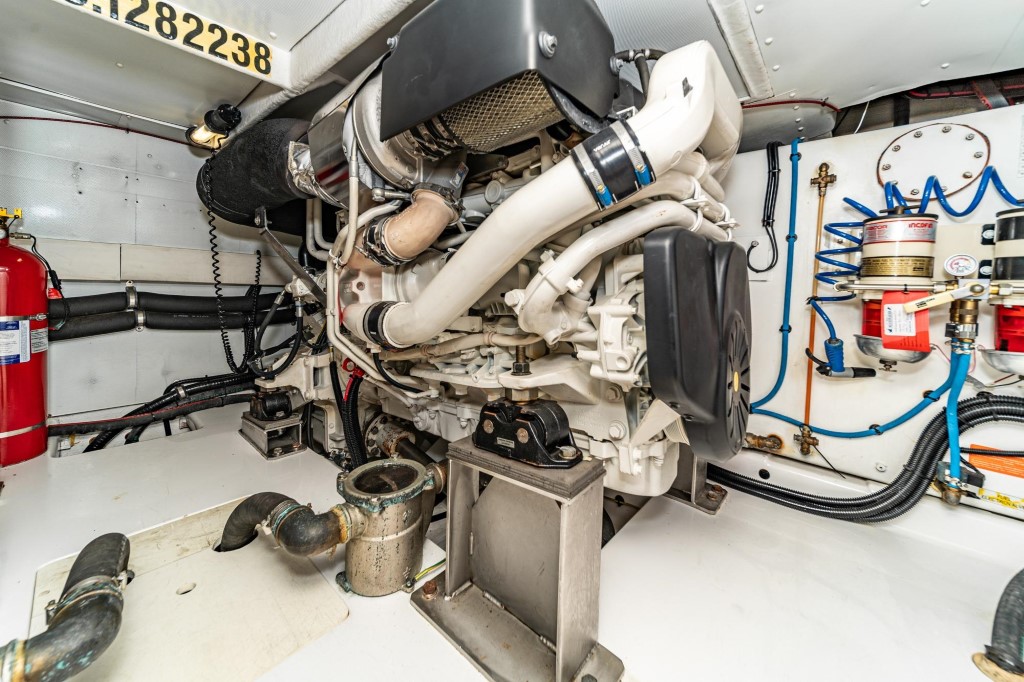

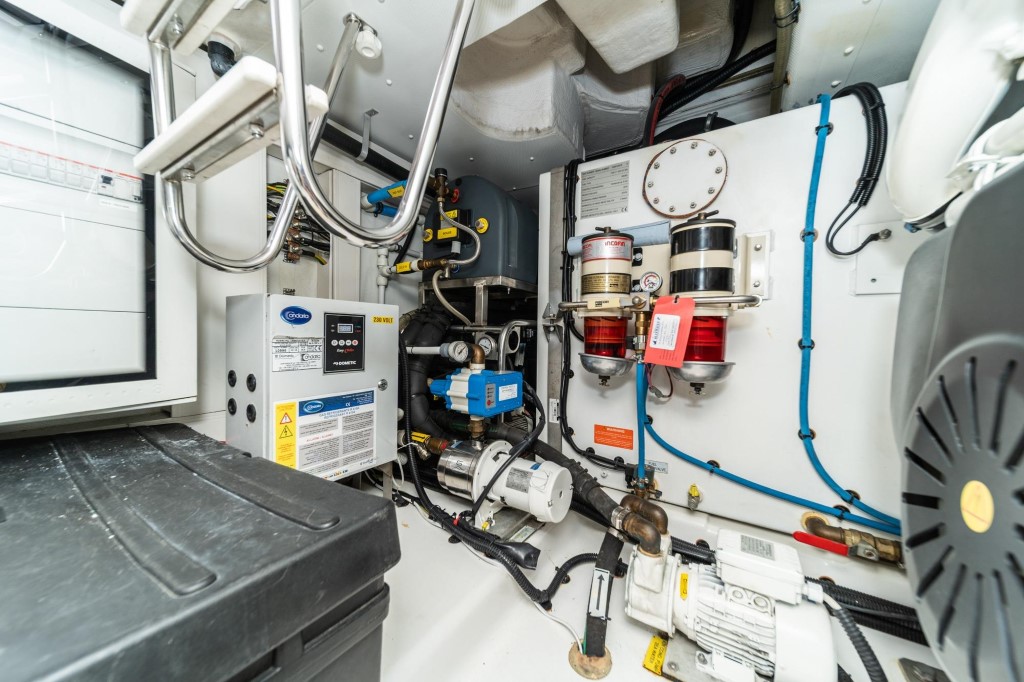

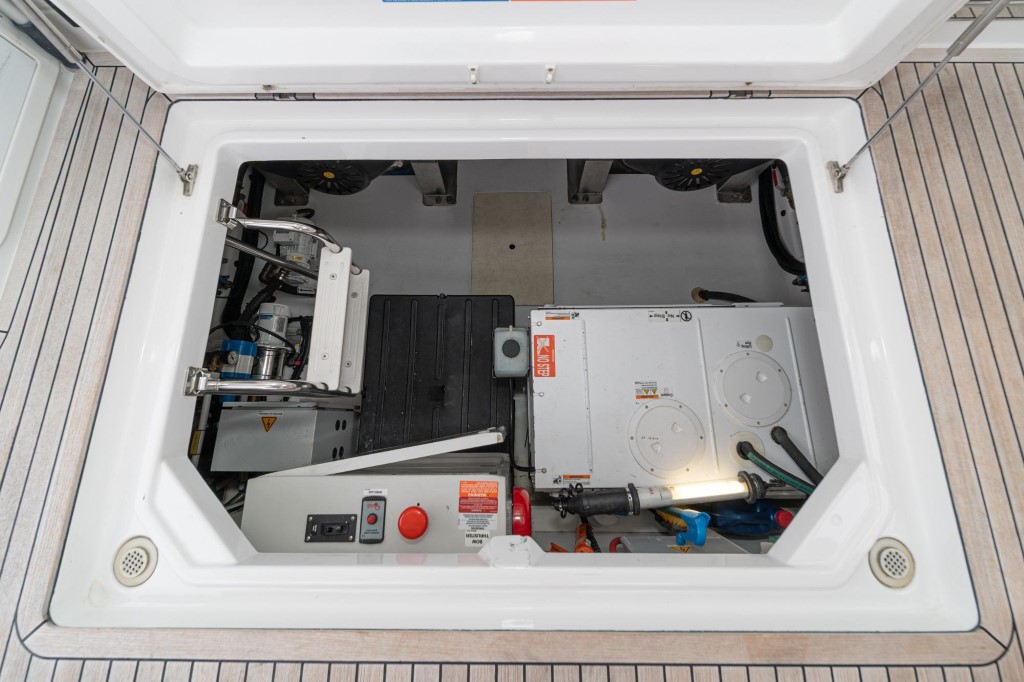

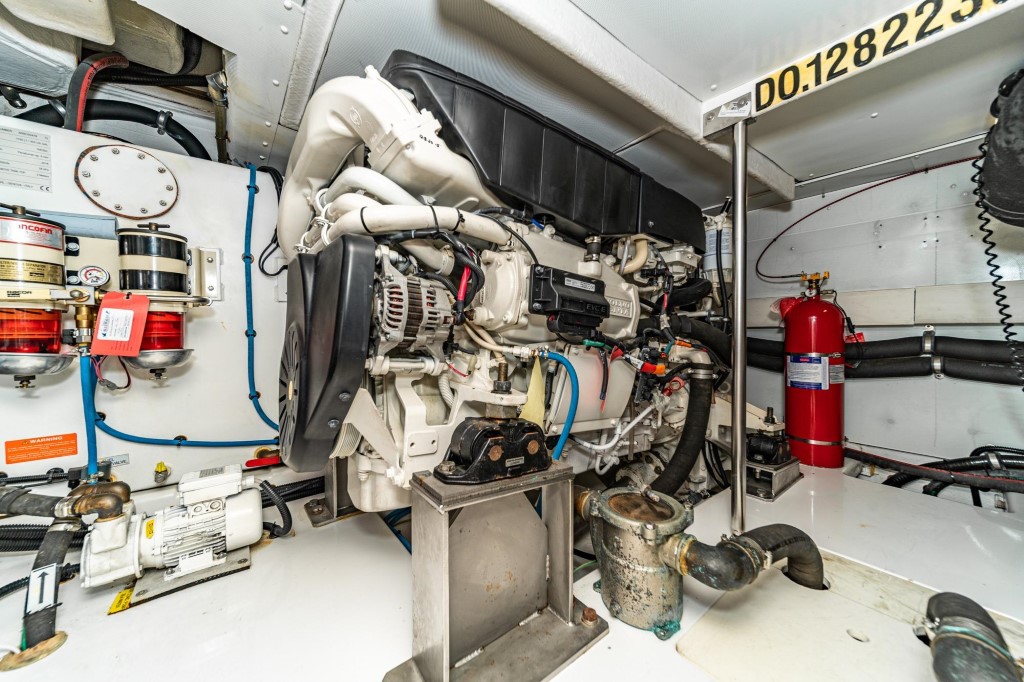

Engine cooling system: 2 dynamic sea- water intakes 2.5” with filter and valves Generator cooling system: submerged outlet: 1 dynamic 1" seawater intake with filter and valve Air conditioning cooling system: sub- merged outlet: 1 dynamic 1" seawater intake with filter and valve Chain wash pump: seawater  Engine gas exhaust system  Gas exhaust system: immersed by-pass Insulated stainless steel raisers Exhaust pipes: structural muffler in GRP  Water/fumes separator for generator, with side exhaust Engine room (other)  Access from door in cockpit floor Battery housing: 1 set on stern bulkhead, on frame above water heater; 1 set in crew cabin, behind headboard wall Sound-proofing
